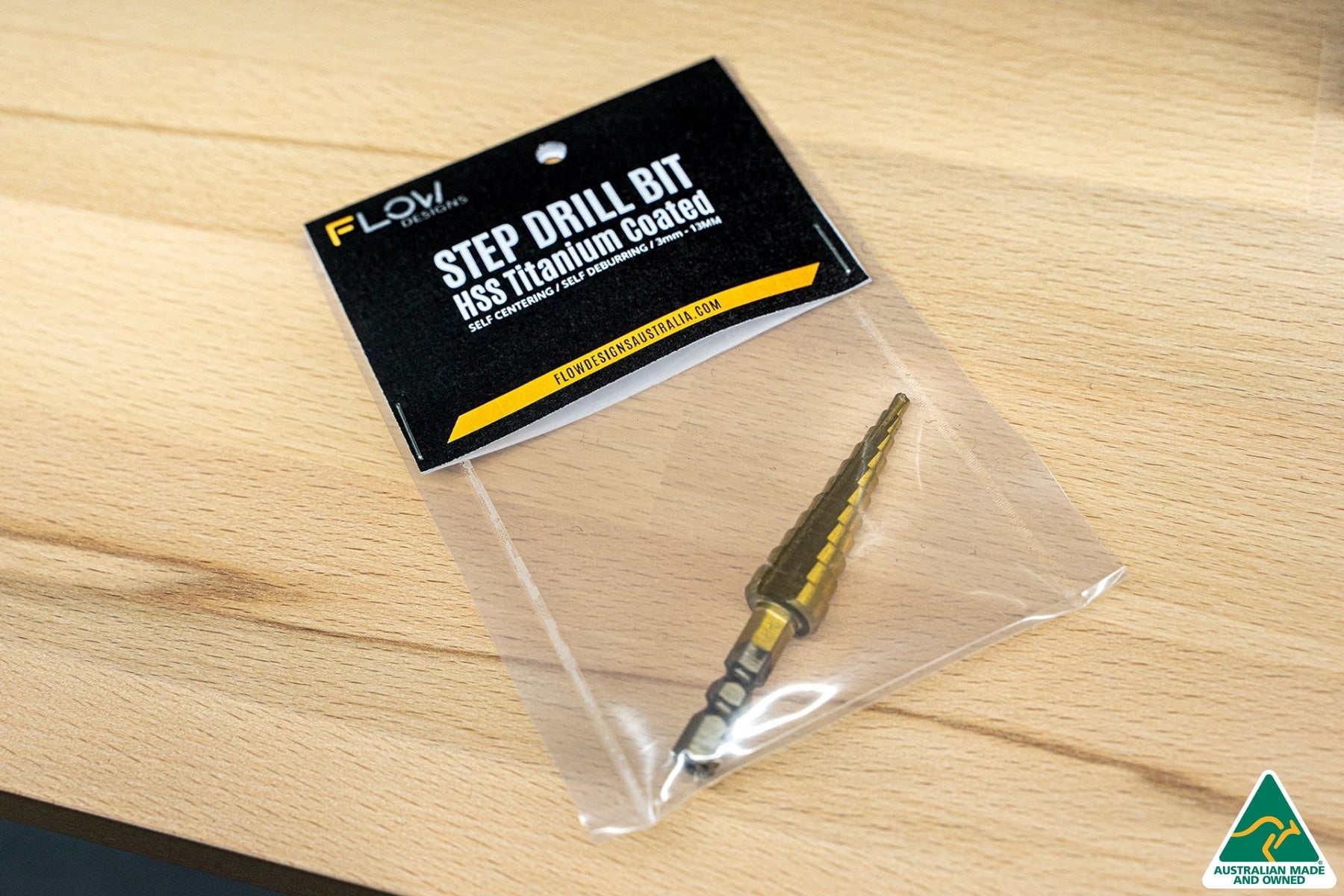

Metric Step Drill Bit : HSS Titanium Coated 3mm – 13mm

SKU: SB313
Sale price$29.99 AUD

Tax included.


Pickup available at iilumolab

Please enquire for pick-up availabilities.

Metric Step Drill Bit : HSS Titanium Coated 3mm – 13mm

Metric Step Drill Bit : HSS Titanium Coated 3mm – 13mm

iilumolab

Pickup available, please enquire for pick-up availabilities.

22 Atlantic Drive
Keysborough VIC 3173
Australia

+611800003888
In-Store Installation

Click HERE to make a booking

Metric Step Drill Bit : HSS Titanium Coated 3mm – 13mm

These HSS Titanium Coated 3mm – 13mm Step Drill Bits are easy to use 1/4 inch hexagonal shank for cutting into wood or metal thin plate or hollow section.

FREE POSTAGE when purchased with any other splitter, diffuser or splitter accessory!

Each tool produces a clean chamfered hole in the material. Can be used on plate, bar, tube, or box section. Cutting fluid or drill lubricant is recommended (the type of fluid depends on the material being machined).

As with all machining, it is best to go slow, keep the tool cool, and use LOTS of lubricant.

Application

We recommend that your intended drilling surface is clean and dry before centre punching the material to prevent ‘wandering’. Ensure to apply sufficient lubricant.

Failure to use lubricant and/or drilling fast may reduce the life of the Bit resulting in a dull or burnt tip. Injecting cold water, oil, or simple drill lubricant while working, can effectively extend the service life of the drill bit.

This bit is best suited for mild steel and softer alloys – they are not the best with 316 Stainless Steel.

Specification

11 Steps sizes  :  3mm, 4mm, 5mm, 6mm, 7mm, 8mm, 9mm, 10mm, 11mm, 12mm, 13mm

Measurement   : Metric
Coating              : Titanium.

Material             : HSS4241

Shank                 : 1/4″ (6.35mm) hex shank

Length                :  ~64mm
