Radium Universal 3AN Vacuum Port Adapter
Tax included. Shipping calculated at checkout
Description

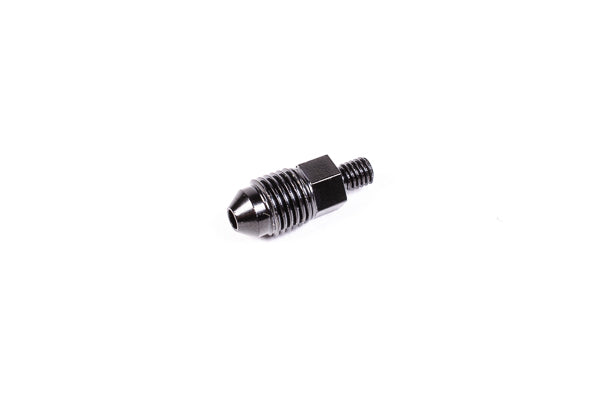

Radium Universal 3AN Vacuum Port Adapter
Application: Radium fuel pressure regulators, fuel pulse dampers and fuel hangers with a #10-32 vacuum port
Part Type: Vacuum port adaptor, #10-32 to 3AN
Part Number: 14-0369

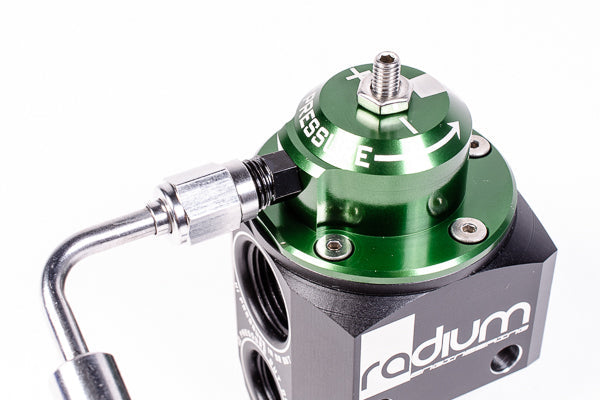

Radium adjustable fuel pressure regulators and fuel pulse dampers have a #10-32 threaded port that provides a 1:1 rising/falling rate vacuum reference. This adaptor threads into that port and has 3AN fitting threads, allowing a 3AN hose to be connected directly to the vacuum port.
It is machined from high-strength steel with a black zinc-plated finish, and can be used as a replacement or to add a vacuum fitting the product did not ship with.
Key Features
- Thread: #10-32
- Hose Connection: 3AN
- Material: High-strength steel
- Finish: Black zinc-plated
Important Notes
- Not compatible with FPD-R units built before July 2019
- Install with a medium-strength wicking thread locker – green Loctite 290 is preferred
- Tighten to approximately 5.6 Nm (50 in-lb) with a 5/16" spanner
- Installation instructions are available in the Instructions tab
Vehicle Fitment
- Universal – see Application
- Radium MPR, DMR, DFPR, FST-R, MPFST-R, FPD-R, FPD-XR and FPR-D, plus applicable Radium fuel hangers (BMW, Ford, Nissan, etc.)
Not sure if this suits your vehicle? Email sales@coore.com.au and our team will confirm fitment.
