Radium Remote Mount, SVF, Swing Valve Filler, 1.5"

Radium Remote Mount, SVF, Swing Valve Filler, 1.5"

Application: Universal – remote mounted fuel filler for fuel cells or tanks using 1.5in ID filler hose
Part Type: Remote mount swing valve fuel filler (SVF)
Part Number: 20-1003

A remote mounted fuel filler is not located directly on the fuel tank or fuel cell but somewhere else on the vehicle, such as a guard. The system has three main parts: the remote filler (the housing and cap on the outside of the vehicle), the remote fill neck (the barb or AN connection on the fuel cell or FCST) and the filler hose that joins them.

The SVF is a capless filler that mimics OEM designs: the swing valve opens when a nozzle is inserted, so there is nothing to unscrew, and a press-fit dust cap is tethered to the flange. The 30mm opening accepts petrol and diesel nozzles, and the outlet is a machined barb for 1.5in filler hose.

Key Features

• Capless Swing Valve: Opens on nozzle insertion; 30mm opening accepts petrol and diesel nozzles
• Outlet: Machined hose barb for 1.5in ID filler hose, O-ring sealed
• Swappable Outlet: Outlet adapter can be changed by removing six screws (adapters sold separately)
• Seals: FKM O-ring on the swing valve; ozone and flame resistant gasket

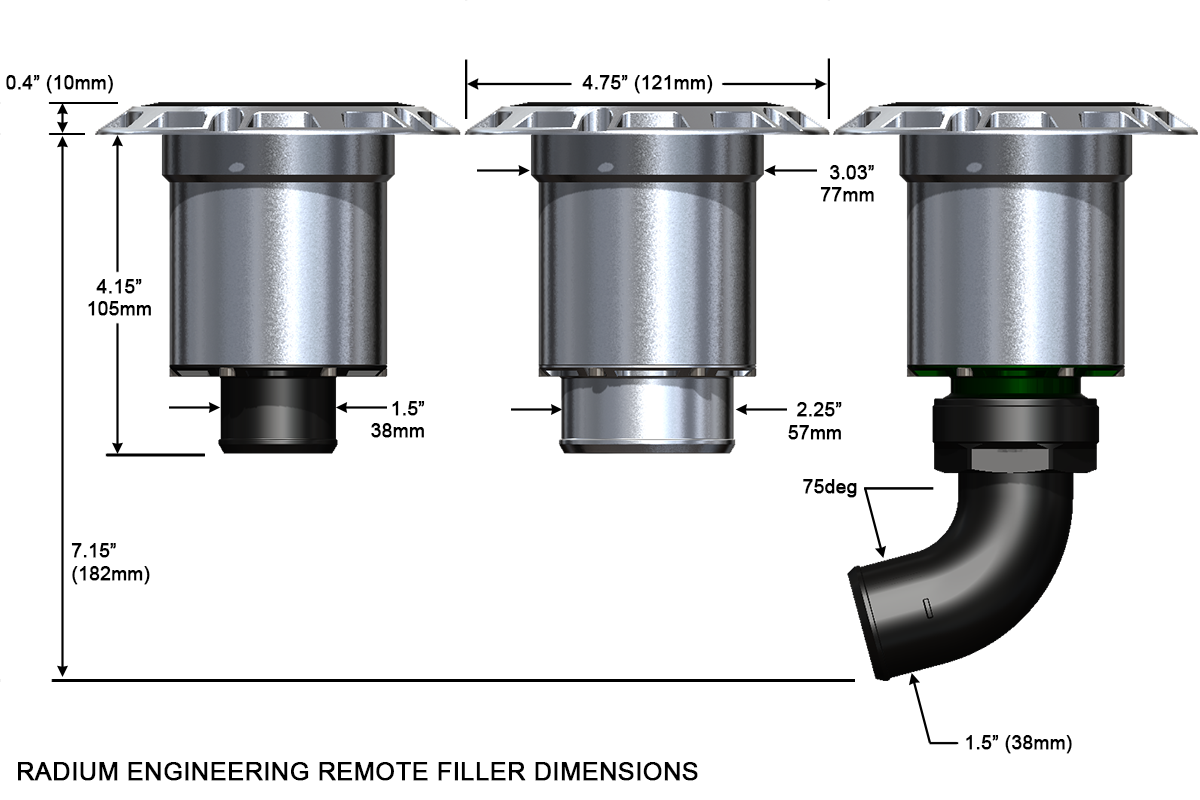

• Mounting: 77mm (3.03in) hole, five stainless M5 bolts on a 108mm (4.25in) PCD with anodised aluminium nut ring
• Flange: 121mm (4.75in) OD
• Height: 104mm (4.1in)
• Interchangeable Caps: Cap threads match the Radium dry break and standard caps
• Dust Cap: Press-fit, tethered to the flange

What's Included

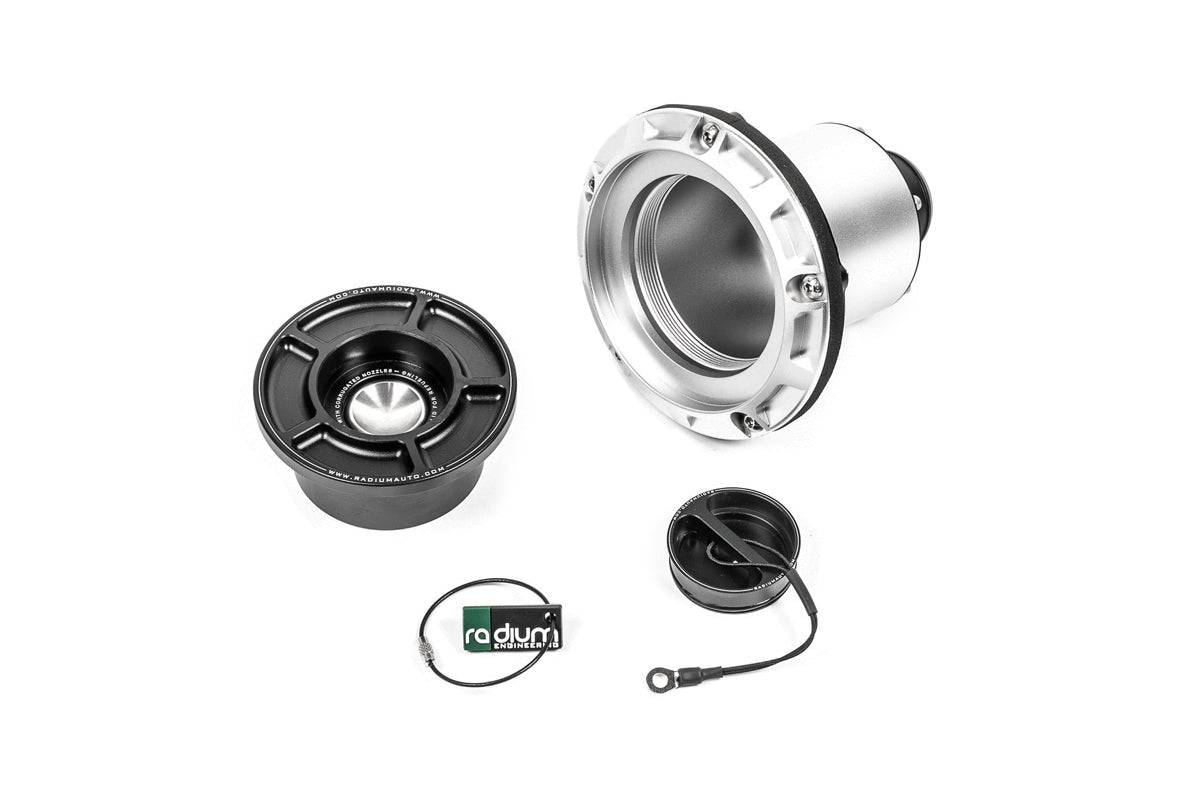

• Swing valve cap
• Flanged fill neck for 1.5in ID hose
• Gasket
• Nut ring
• M5 bolts
• Tether components

Optional Parts

• Radium Fuel Fill Neck Hose Kit - 1.5" ID (20-0597) – 1.5in ID filler hose
• Radium Fuel Fill Neck Hose Kit, 1.5in, Clear (20-0602) – 1.5in ID clear filler hose
• Radium Engineering FCST-X 3-Bolt Remote Mount Fill Neck - Straight with 1.5" Barb (20-1027) – FCST-X straight remote fill neck, 1.5in barb
• Radium Engineering FCST-X 3-Bolt Remote Mount Fill Neck - 24AN Elbow with 1.5" Barb (20-1047) – FCST-X 24AN 75° elbow remote fill neck, 1.5in barb
• Radium Dry Break, 1.5In, Female, Vented (20-0549-V) – dry break upgrade
• Radium Remote Mount, SVF, Swing Valve Filler, Cap (20-1548) – replacement swing valve cap
• Radium Remote Mount Filler Adapter, 2.25In (20-1007) – outlet adapter for 2.25in hose
• Radium Engineering Remote Mount Filler Adapter - 24AN (20-1008) – 24AN outlet adapter

Important Notes

• Fill necks, hose and other tank-side accessories are not included
• Mount on a relatively flat surface higher than the fuel tank fill point; Radium's instructions call for a 77mm (3.03in) hole and five 6mm (1/4in) bolt holes
• Can be upgraded to a dry break filler with the Radium 20-0549-V
• Installation instructions are available in the Instructions tab

Vehicle Fitment

• Universal – see Application

Not sure if this suits your vehicle? Email sales@coore.com.au and our team will confirm fitment.
