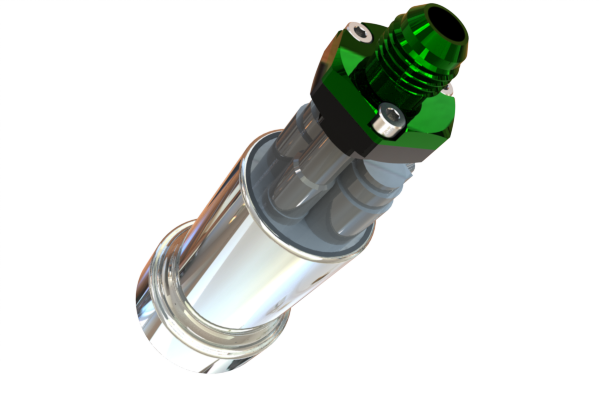

Radium Pump Outlet Adapter - Extended

Radium Pump Outlet Adapter - Extended

Application: Walbro/TI F90000274, F90000285, F90000295; TI E5LM; Bosch Motorsport BR540; DeatschWerks DW400 and DW440
Part Type: Fuel pump outlet adapter, 6AN male, extended
Part Number: 20-0599

Radium Engineering pump outlet adapters convert the hose-barbed outlet of many fuel pumps to a 6AN male fitting. Two billet aluminium halves bolt together with stainless steel hardware and clamp around the pump outlet, with a stainless steel retainer and FKM O-ring providing the seal.

The extended 20-0599 (black upper fitting) is 0.42" (10.7mm) taller than the standard 20-0298, positioning the fuel pump at a more advantageous height in the tank. All components are E85 compatible.

Key Features

• Extended Height: 0.42" (10.7mm) taller than the standard 20-0298
• 6AN Male Outlet: Converts hose-barbed pump outlets to 6AN male
• Clamp Design: Two billet aluminium halves with stainless steel hardware
• Secure Seal: Stainless steel retainer and FKM O-ring
• E85 Compatible: All components suit E85

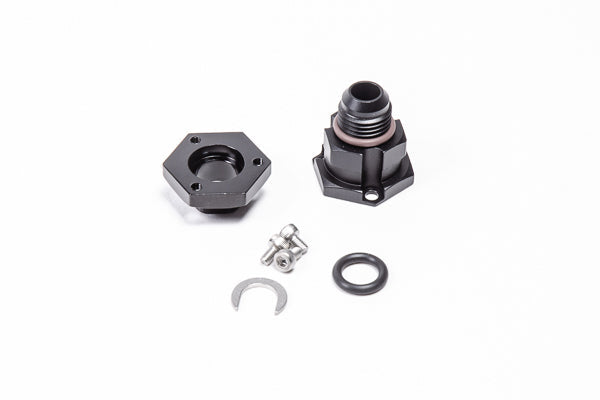

What's Included

• Anodised aluminium 6AN male top
• Anodised aluminium lower base
• 2x Half-moon retainer clips
• FKM O-ring
• Stainless steel hardware

Optional Parts

• Radium Fuel Pump Adapter For Walbro F90000267 / F90000274 Pumps Only (20-0598) – check valve outlet adapter for pumps without an integrated check valve

Important Notes

• The Walbro/TI F90000274, F90000285, F90000295, TI E5LM and Bosch BR540 pumps have no integrated check valve – check valve adapters are sold separately
• DeatschWerks DW400 pumps made before May 2019 have no internal check valve
• The standard-height version is Radium 20-0298
• Installation instructions are available in the Instructions tab

Vehicle Fitment

• Walbro / TI Automotive F90000274
• Walbro / TI Automotive F90000285
• Walbro / TI Automotive F90000295
• TI Automotive E5LM (BKS1000 / BKS1001 Brushless Controller Kit)
• Bosch Motorsport BR540
• DeatschWerks DW400
• DeatschWerks DW440 (Brushless)

Not sure if this suits your vehicle? Email sales@coore.com.au and our team will confirm fitment.
