Radium Port Injection Fuel Rail Plumbing Kit - Toyota Supra A90 19+/BMW Z4 G29 18+

Radium Port Injection Fuel Rail Plumbing Kit - Toyota Supra A90 19+/BMW Z4 G29 18+

Application: Toyota GR Supra A90 / A91 and BMW Z4 G29 with 2nd generation B58TU engine and Radium 20-0753 Port Injection Kit
Part Type: Port injection fuel rail plumbing kit
Part Number: 20-0753-PK

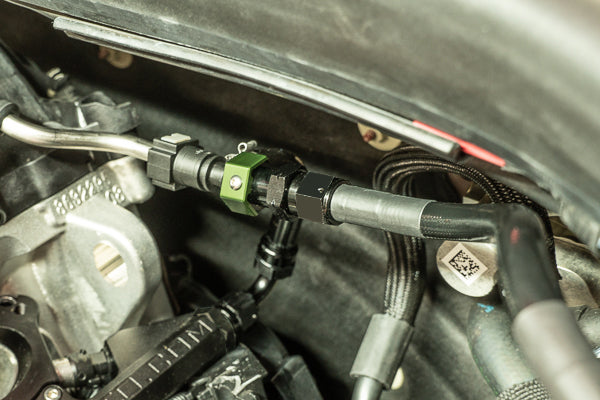

The Radium 20-0753-PK Fuel Rail Plumbing Kit connects the OEM low-pressure fuel feed hose to the rear of the Radium 20-0753 port injection fuel rail, so the added port injectors are supplied straight from the factory low-pressure fuel system.

The kit uses an SAE quick connect tee PTFE hose assembly and a preassembled 6AN PTFE hose, and Radium quotes an installation time of under 10 minutes. It is not required when an independent port injection fuel system, such as the Radium 20-0760 fuel pump hanger, is used.

Key Features

• OEM Feed Connection: SAE quick connect tee PTFE hose assembly taps into the factory low-pressure fuel feed
• Preassembled Hose: 6AN PTFE fuel hose supplied ready to fit
• Rail Fittings: 8AN ORB to 6AN male fitting for the rail end port, plus an 8AN ORB plug for the unused port
• Quick Install: Radium quotes under 10 minutes when used with the Radium 20-0753 port injection kit
• Fuel Compatibility: Suitable for all fuel types, including E85

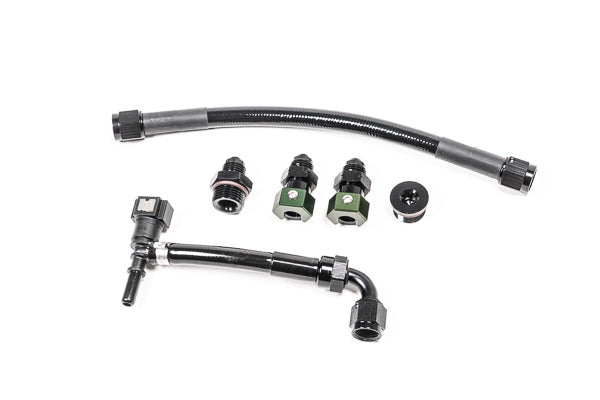

What's Included

• SAE quick connect tee PTFE hose assembly
• Preassembled 6AN PTFE fuel hose
• 8AN ORB to 6AN male fitting
• 8AN ORB plug

Optional Parts

• Radium Port Injection Fuel Rail Kit - Toyota Supra A90 19+/BMW Z4 G29 18+ (20-0753) – required; this plumbing kit connects the OEM fuel feed to its fuel rail
• Radium Fuel Pump Hanger, Toyota GR Supra A90 / A91 (2019+) (20-0760) – alternative independent port injection fuel supply; this plumbing kit is not needed when it is used

Important Notes

• Requires the Radium 20-0753 Port Injection Kit (sold separately)
• Compatible with 2nd generation B58TU engines only: B58B30O1 (B58B30B) and B58B30M1 (B58B30C)
• Not compatible with the 1st generation B58B30M0 (B58B30A) engine
• Not required if an independent port injection fuel system (e.g. Radium 20-0760 fuel pump hanger) is used
• Installation instructions are available in the Instructions tab

Vehicle Fitment

• Toyota GR Supra A90 / A91 (2020+) – 2nd generation B58TU engine
• BMW Z4 G29 (2018+) – 2nd generation B58TU engine

Not sure if this suits your vehicle? Email sales@coore.com.au and our team will confirm fitment.
