Radium Fuel Rail Plumbing Kit - HSV VE/VF (LSA/LS9)

Radium Fuel Rail Plumbing Kit - HSV VE/VF (LSA/LS9)

Application: GM LS9/LSA with Radium 20-0362 fuel rails – HSV GTS/Clubsport R8/Maloo, Camaro ZL1, Corvette ZR1, CTS-V
Part Type: Fuel rail plumbing kit
Part Number: 20-0545

The Radium Engineering Fuel Rail Plumbing Kit provides the plumbing hardware for a plug-and-play installation of the Radium 20-0362 LS9/LSA fuel rails.

An SAE quick connect adapts the OEM feed line into two 6AN PushLok lines, one for each rail, and 8AN ORB plugs seal all unused ports. Nothing else is required.

Key Features

• Plug and Play: Designed specifically for the Radium 20-0362 rails
• OEM Feed Adaptation: 3/8in SAE quick connect to 6AN
• Dual Feed: Y-adapter splits the feed into two 6AN PushLok lines
• Complete: 8AN ORB plugs for all unused ports

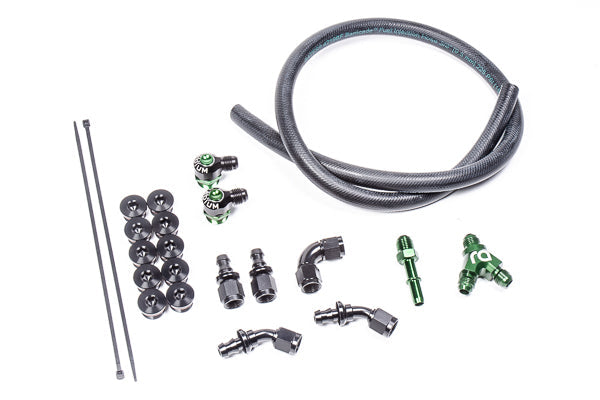

What's Included

• 3/8in EFI hose
• 3/8in SAE to 6AN male fitting
• 8AN ORB plug (x10)
• 6AN-6AN-6AN Y-adapter
• PushLok hose end (x4)
• 6AN female to female coupler
• 8AN ORB to 6AN male swivel fitting (x2)

Optional Parts

• Radium Fuel Rails - HSV VF GTS/Clubsport/Maloo (LSA/LS9) (20-0362) – Radium LS9/LSA fuel rails – required, not included in this kit

Important Notes

• Fuel rails are not included – this kit is for use with the Radium 20-0362 fuel rails
• Installation instructions are available in the Instructions tab

Vehicle Fitment

• HSV GTS (2013-2017)
• HSV GTS Maloo (2014)
• HSV Clubsport R8 (2015-2017)
• HSV Maloo R8 (2015-2017)
• HSV GTSR, GTSR Maloo and GTSR W1 (2017)
• Chevrolet Camaro ZL1 (2012-2015)
• Chevrolet Corvette ZR1 (2009-2013)
• Cadillac CTS-V (2009-2015)

Not sure if this suits your vehicle? Email sales@coore.com.au and our team will confirm fitment.
