Radium Engineering Fuel Rail Plumbing Kit for BMW M54

Radium Fuel Rail Plumbing Kit, BMW M54

Application: BMW M54 (returnless fuel system) with the Radium 20-0770 fuel rail
Part Type: Fuel rail plumbing kit
Part Number: 20-0807-PK

The Radium Engineering 20-0807-PK plumbing kit connects the Radium 20-0770 fuel rail to the BMW M54's returnless fuel system. It mimics the OEM fuel rail feed line using 6AN hose and fittings.

Per Radium's instructions, the front and centre rail ports are closed with 8AN ORB plugs and the rear port takes an 8AN ORB to 6AN male fitting, with 3/8in EFI hose and 6AN Pushlok hose ends running to a 5/16in SAE to 6AN male adapter on the factory feed.

Key Features

• OEM-Style Feed: Mimics the OEM fuel rail feed line using 6AN hose and fittings
• Returnless: Designed for the M54's returnless fuel system
• Port Plugs: 8AN ORB plugs close the unused rail ports
• Push-Lock Hose: 3/8in EFI hose with 6AN Pushlok hose ends

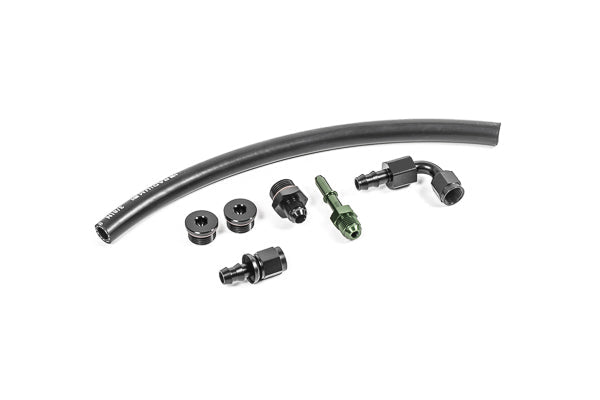

What's Included

• 5/16in SAE to 6AN male fitting
• 8AN ORB plugs (x2)
• 8AN ORB to 6AN male fitting
• 6AN Pushlok hose ends
• 3/8in EFI hose

Optional Parts

• Radium Fuel Rail, BMW M50 / M52 / M54 / M56 / S50 / S52 (E36 / E46 / Z4) (20-0770) – the Radium fuel rail this kit plumbs (required)

Important Notes

• ONLY compatible with the BMW M54 (returnless fuel system)
• Requires the Radium 20-0770 fuel rail (sold separately)
• Installation instructions are available in the Instructions tab

Vehicle Fitment

• BMW 320i / 320Ci (2000-2006)
• BMW 325i / 325xi / 325Ci / 325ti (2000-2006)
• BMW 330i / 330xi / 330Ci (2000-2006)
• BMW 520i (2000-2005)
• BMW 525i / 525xi (2000-2005)
• BMW 530i (2003-2005)
• BMW Z3 (2000-2002)
• BMW Z4 (2000-2006)
• BMW X3 (2003-2006)
• BMW X5 (2000-2006)
• BMW 730i / 730Li (2002-2005)
• Wiesmann MF 30 (2000-2002)
