Radium Fuel Rail - Honda S2000 AP2 05-09
Tax included. Shipping calculated at checkout
Description
Radium Fuel Rail - Honda S2000 AP2 05-09
Application: Honda S2000 (2006-2009)
Part Type: Billet aluminium upgrade fuel rail
Part Number: 20-0391-02
The Radium Fuel Rail for the 2006-2009 Honda S2000 is a high-flow upgrade rail with a large 17.5mm (0.69") internal bore. It uses all four OEM mounting bosses and is machined, anodised and laser etched, with three large ports tapped for 8AN ORB fittings.
This basic setup contains the fuel rail and mounting feet only, making it a good option for custom fuel system builds. Fittings and adapters must be purchased separately – choose them to suit the application and leave room around the ports for larger accessories such as regulators, gauges and pulse dampers. For a direct hook-up to the factory feed line, add the 20-0391-PK plumbing kit.
Key Features
- Large Internal Bore: 17.5mm (0.69") diameter
- OEM Mounting: Uses all four OEM mounting bosses
- 8AN ORB Ports: Three large ports tapped for 8AN ORB
- Finish: Machined, anodised and laser etched
- Upgrade Rail: Uses OEM or OEM-equivalent injectors

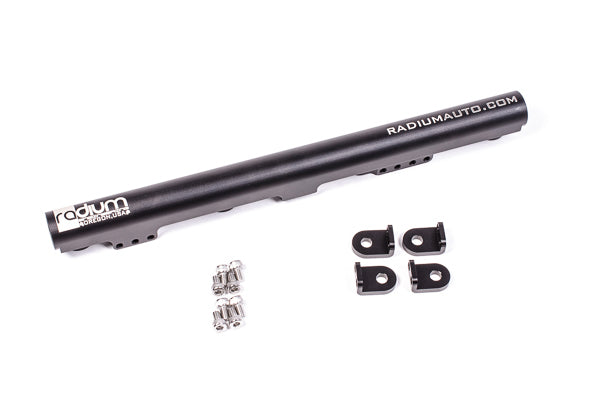

What's Included
- Billet anodised aluminium fuel rail
- Mounting feet (x4)
- Stainless steel mounting hardware
Optional Parts
- Radium Fuel Rail Plumbing Kit - Honda S2000 AP2 05-09 (20-0391-PK) – Fittings and PTFE hose to connect the rail to the factory feed line
Important Notes
- Fittings and adapters are not included
- OEM or OEM-equivalent injectors must be used (same height and upper/lower O-ring diameters and styles); Radium does not make injector recommendations

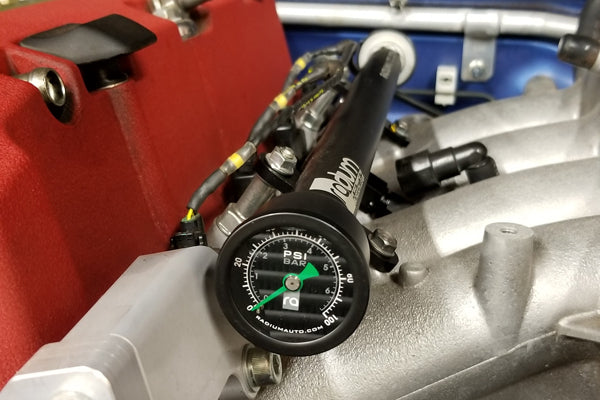

- Allow clearance around the ports for regulators, gauges and pulse dampers
- Installation instructions are available in the Instructions tab
Vehicle Fitment
- Honda S2000 (2006-2009)
Not sure if this suits your vehicle? Email sales@coore.com.au and our team will confirm fitment.
