Radium Fuel Pump Install Kit (Pump NOT Incl) - Porsche 911 Turbo 996

Radium Fuel Pump Install Kit (Pump NOT Incl) - Porsche 911 Turbo 996

Application: Porsche 911 Turbo (996)
Part Type: Fuel pump install kit – pump not included
Part Number: 20-0276-00

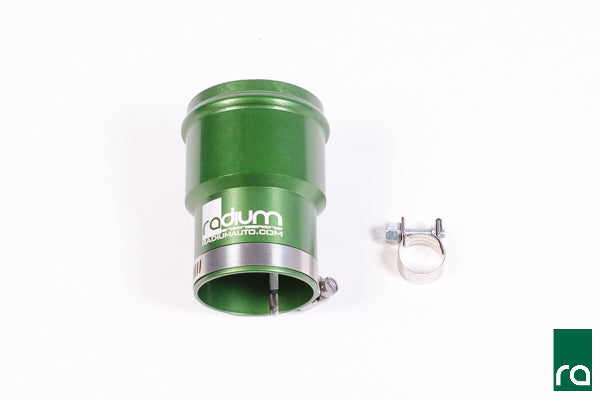

The Radium Fuel Pump Install Kit is a plug-and-play, bolt-in solution for fitting popular high-performance aftermarket fuel pumps to the Porsche 911 Turbo (996). Its CNC machined 6061-T6 billet aluminium sleeve slides over a 39mm aftermarket pump to match the 50mm diameter of the OEM Porsche pump.

A machined rib snaps into the fuel pump hanger and locates the filter sock. No permanent modifications to the fuel system are required, and the OEM venturi jet pump system and level sender are retained.

Key Features

• Bolt-In Install: Plug-and-play, no permanent fuel system modifications
• 39mm to 50mm Sleeve: Adapts 39mm aftermarket pumps to the OEM 50mm location
• 6061-T6 Billet: CNC machined, anodised
• Locating Rib: Snaps into the hanger and positions the filter sock
• OEM Systems Retained: Venturi jet pump and level sender stay in place

What's Included

• 1x Anodised billet aluminium pump adapter
• 1x EFI hose clamp
• 1x Worm drive hose clamp
• Electrical terminals

Optional Parts

• Radium Turbo Fuel Cell Surge Tank Install Kit (FST Not Included) - Porsche 996 (20-0288) – recommended to resolve fuel starvation inherent to the OEM 996 tank
• Radium Fuel Pump Inlet Filter Sock (14-0143) – required if your pump has no filter sock
• Radium Fuel Pump Connector Harness Walbro 255 - Porsche 911 Turbo 996 (17-0053) – plug-and-play harness
• Radium Fuel Pump Connector Harness Walbro 460 E85 - Porsche 911 Turbo 996 (17-0054) – plug-and-play harness

Important Notes

• Fuel pump not included
• Measure the OEM pump and confirm it is 50mm in diameter before ordering
• Pumps not listed must have a 39mm outside diameter – larger or smaller pumps will not fit
• Compatible pumps: Walbro GSS341/GSS342 255LPH, F90000262, F90000267, F90000273, F90000274, F90000285, F90000295; AEM 50-1000, 50-1200; Aeromotive 340R 11141, 11142; DeatschWerks DW300 9-301-1000
• Walbro F90000262/273 use the same connectors as the OEM Porsche pump
• All listed pumps outflow the OEM pump except the Walbro 255LPH, which will also outflow it if the OEM check valve is removed (see instructions)
• No wiring is included – the blue spade terminals connect to the OEM harness; a flying lead for your pump may be required, or use a Radium plug-and-play harness
• Installation instructions are available in the Instructions tab

Vehicle Fitment

• Porsche 911 Turbo (996) – AWD

Not sure if this suits your vehicle? Email sales@coore.com.au and our team will confirm fitment.
