Radium Fuel Pump Hanger - Subaru WRX 08-21/STI 08-21/FXT 08-18/LGT 04-09

Radium Fuel Pump Hanger - Subaru WRX 08-21/STI 08-21/FXT 08-18/LGT 04-09

Application: Subaru Impreza / WRX / STI, Forester, Legacy and Outback – see Vehicle Fitment
Part Type: Fuel pump hanger (single or dual pump)
Part Number: 20-0780-00, 20-0781-00, 20-0782-00

The Radium Late Model Subaru Fuel Pump Hanger replaces the OEM hanger and fuel hold-down flange (reusing the OEM gasket) and supports one or two high-flow aftermarket fuel pumps. It is safe with E85 and other alternative fuels and requires no permanent modifications.

An anodised aluminium collector box keeps fuel around the pumps to help prevent starvation, fed by two one-way fill valves and a venturi jet pump with an integrated pressure relief valve that moves fuel from the passive to the active side of the tank without restricting the return. Each pump merges internally into a single outlet, so no external line merging is needed.

Key Features

• Single or Dual Pump: Supports one or two high-flow aftermarket pumps

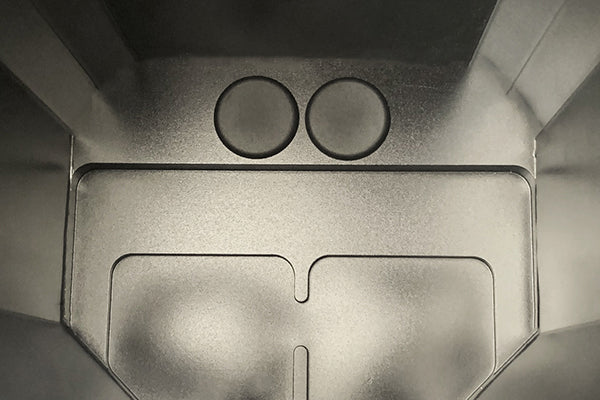

• Collector Box: Anodised aluminium, with two 355 LPH one-way fill valves (710 LPH total)

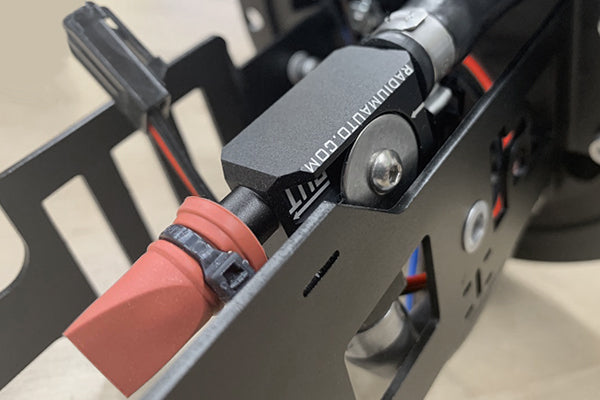

• PRV Jet Pump: Venturi jet pump with integrated pressure relief valve transfers fuel without restricting the return
• Duckbill Valve: One-way valve prevents backflow and reduces fuel spray noise
• Merged Outlet: 8AN ORB (3/4"-16) pump-out port with preinstalled SAE quick connect male fitting
• Return and Crossover: 6AN ORB (9/16"-18) ports with preinstalled SAE quick connect male fittings
• Electrical: Anti-rotation stainless studs, separate +/- connection per pump, non-conductive anodised acorn nuts

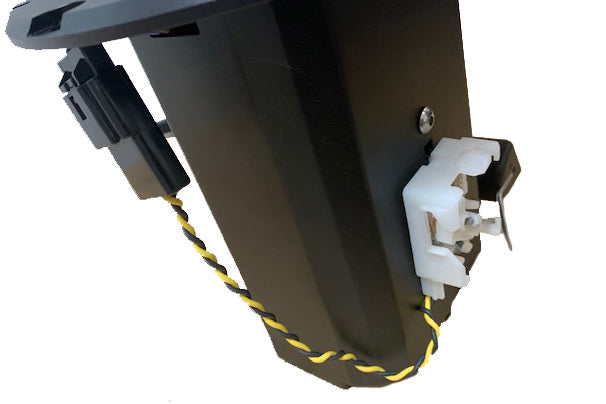

• OEM Sensors: Level sensor mounts on the collector box; temperature sensor mounts on the internal pump bracket

Available Configurations

• 20-0780-00: Walbro GSS342 (255 LPH), AEM 50-1200, AEM 50-1230* or AEM 50-1235*
• 20-0781-00: DeatschWerks DW400

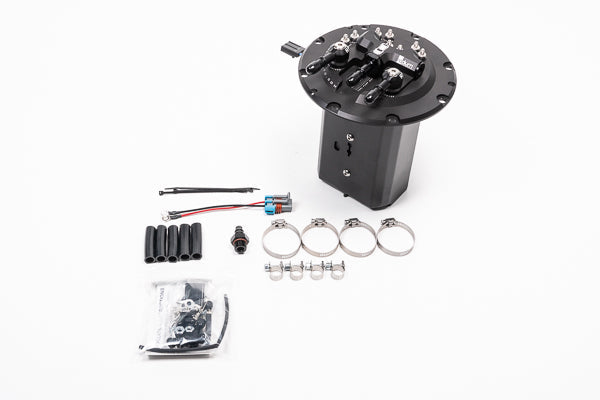

• 20-0782-00: Walbro F90000267, F90000274, F90000285 or F90000295*

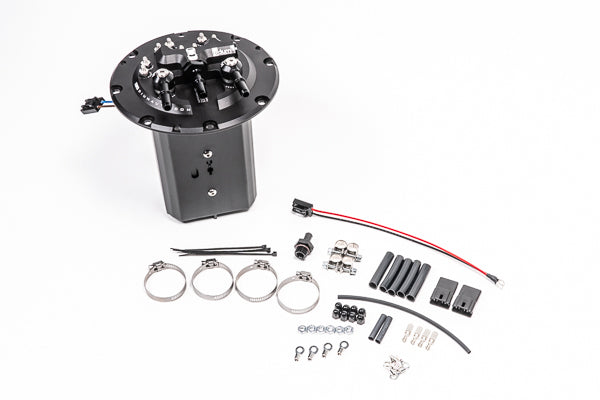

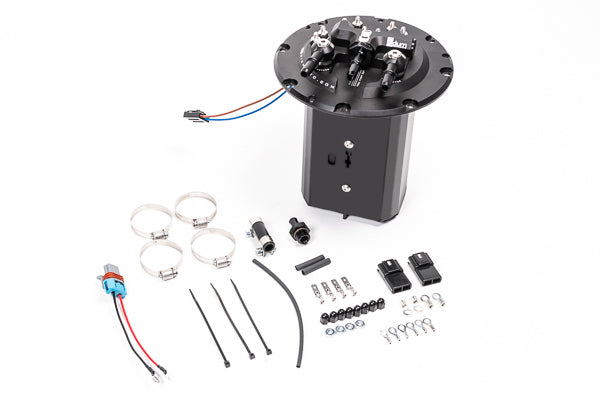

What's Included

• Anodised aluminium, laser engraved fuel hat
• Collector box with two one-way fill valves
• PRV venturi jet pump
• Stainless electrical terminals and hardware
• SAE quick connect fittings
• Submersible fuel tubing

Optional Parts

• Radium Fuel Rail Plumbing Kit w/Filter - Subaru WRX 08-14/STI 08-21/FXT 08-13/LGT 04-09 (20-0629-03 / 20-0629-05) – plumbing kit with post-pump filter, feed/return lines, retainers and filter bracket
• Radium Fuel Level Sensor Adaptor, Subaru WRX VA / Forester XT SJ (20-0850) – required for 2015–2021 WRX and 2014–2018 Forester XT (FA20 returnless system)
• Radium Engineering Check Valve - 6AN ORB to 8.5mm Barb (20-1533) – check valve for AEM 50-1230 / 50-1235 pumps
• Radium Engineering Check Valve - 6AN ORB to 10mm Barb (20-1534) – check valve for Walbro F90000295 pumps

Important Notes

• Fuel pumps not included
• *AEM 50-1230, AEM 50-1235 and Walbro F90000295 have no internal check valve – add 20-1533 (AEM) or 20-1534 (Walbro) if required
• An external post-pump fuel filter is required on all installations (included in the 20-0629 plumbing kit)
• 2015–2021 WRX and 2014–2018 Forester XT have a returnless OEM system and need the 20-0850 level sender adaptor plus an aftermarket FPR
• Single-pump installs can reuse the OEM wiring, but upgraded wiring is recommended for high-current pumps – one DIY wiring kit per pump
• Radium recommends aftermarket fuel rails and an aftermarket FPR when using the plumbing kit
• Radium's instructions include extra steps for RHD vehicles
• Installation instructions are available in the Instructions tab

Vehicle Fitment

• Subaru Impreza incl. WRX / STI (2008–2014)
• Subaru WRX STI (2015–2021)
• Subaru WRX (2015–2021) – requires 20-0850 adaptor and aftermarket FPR
• Subaru Forester (2008–2014)
• Subaru Forester XT (2014–2018) – requires 20-0850 adaptor and aftermarket FPR
• Subaru Legacy (2005–2009)
• Subaru Outback (2005–2009)

Not sure if this suits your vehicle? Email sales@coore.com.au and our team will confirm fitment.
