Radium Fuel Level Switch Plus Diagnostic Indicator

Radium Fuel Level Switch Plus Diagnostic Indicator

Application: Universal – fuel containers with a 1/8" NPT port, including Radium FST, MPFST, MPFST-R, FCST and FCST-X surge tanks
Part Type: Fuel level switch with LED diagnostic indicator kit
Part Number: 20-0519

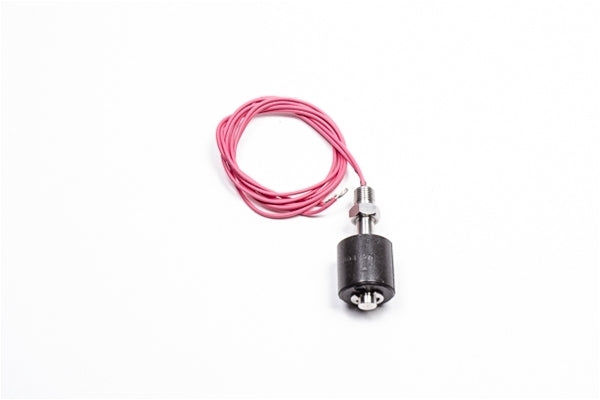

This kit combines the Radium Engineering 1/8" NPT fuel level switch (20-0461) with the fuel level diagnostic indicator (20-0508). The stainless steel switch installs inside the fuel container and provides a switched signal when the fuel level drops, which can drive a dashboard warning light, a programmable ECU input for engine safety, or lift pump on/off control.

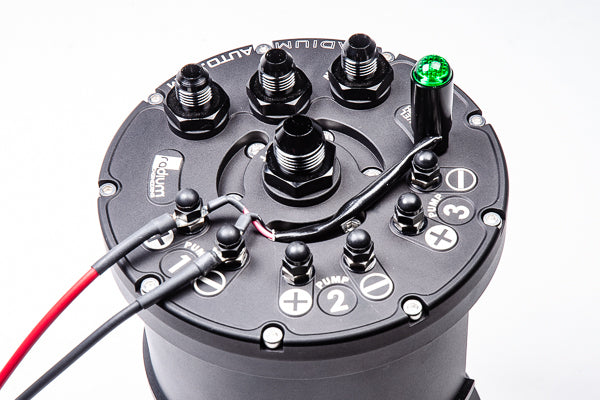

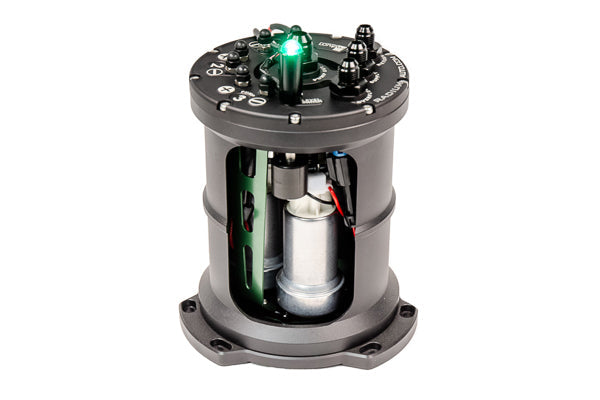

The LED indicator mounts in a 2AN ORB port and gives a visual confirmation of the switch state. It is often not practical to view while driving, so it is mainly used to diagnose a potential fuelling issue.

Key Features

• Switched Output: Drives a dash indicator, ECU safety input or lift pump control
• Diagnostic LED: Visual confirmation of switch operation for troubleshooting
• 1/8" NPT Switch: Stainless steel, corrosion resistant
• 2AN ORB LED Mount: LED mounts in a 2AN ORB (5/16"-24) port
• Reversible Polarity: Remove the E-clip and flip the float to reverse the signal
• Flying Leads: 24" (610mm) 20AWG leads on the switch
• Fuel Compatibility: Suits all fuel types

What's Included

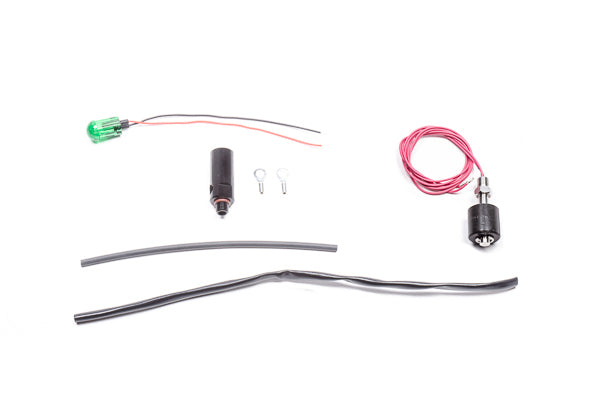

• 1x Fuel level switch with flying leads
• 1x LED with flying leads
• 1x 2AN ORB LED mount
• Eyelet terminals
• Heat shrink
• Abrasion sleeve

Important Notes

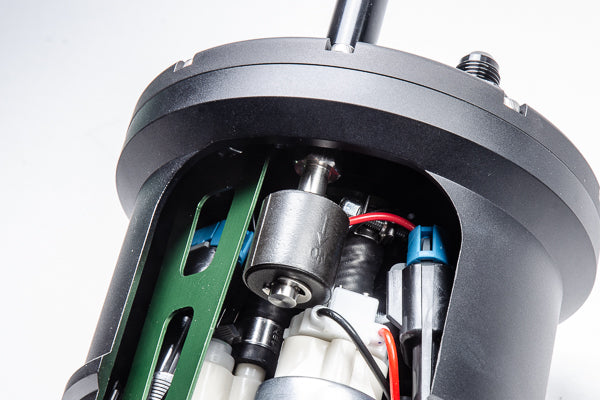

• The switch must be installed inside the fuel container
• Check the signal direction on a test bench before installing – polarity can be reversed by removing the E-clip and flipping the float
• Requires a 1/8" NPT port for the switch and a 2AN ORB (5/16"-24) port for the LED
• If the LED is stacked on the level switch, the panel thickness must be at least 0.75" (19mm)
• Soldering is required to install the LED
• Always apply PTFE thread sealant paste to tapered pipe threads
• Installation instructions are available in the Instructions tab

Vehicle Fitment

• Radium FST and Standard FST (current versions with level switch port)
• Radium MPFST and MPFST-R multi-pump fuel surge tanks
• Radium FCST and FCST-X fuel cell surge tanks
• Universal – see Application

Not sure if this suits your vehicle? Email sales@coore.com.au and our team will confirm fitment.
