Radium Engineering Fuel Hanger Plumbing Kit with Microglass Filter for Subaru BRZ/Toyota 86

Radium Fuel Hanger Plumbing Kit with Microglass Filter: Subaru BRZ/Toyota 86

Application: Subaru BRZ (2012–2020, 2022+), Toyota GT86 (2012–2021), Toyota GR86 (2022+), Scion FR-S (2012–2016) – manual transmission only
Part Type: Fuel hanger plumbing kit (returnless to return conversion) with microglass filter
Part Number: 20-0966-05

The Radium 20-0966-05 Fuel Hanger Plumbing Kit converts the OEM returnless fuel system on the Subaru BRZ, Scion FR-S, Toyota GT86 and GR86 to a traditional return-style system. It connects directly to OEM or aftermarket fuel rails in both single and dual pump configurations. An 8AN PTFE hose feeds a Radium fuel filter with an integrated check valve, mounted under the vehicle on a chassis-specific bolt-on bracket, with an inline fuel pressure gauge secured to the filter.

Fuel pressure is set by an adjustable Radium RA-Series fuel pressure regulator with tool-less adjustment – the knob alone raises or lowers pressure, with no jam nut or set screw. 6AN PTFE hoses are included to feed the port injection fuel rails and the high pressure fuel pump. This -05 version uses a 6 micron microglass filter element; the 20-0966-03 version uses a 10 micron stainless element that can be cleaned and reused.

Key Features

• Return Conversion: Converts the OEM returnless system to a traditional return system
• Single or Dual Pump: Connects directly to OEM or aftermarket fuel rails in single or dual pump configurations
• Microglass Filter: 6 micron microglass element with integrated check valve – no separate check valve needed for fuel pressure hold-up
• RA-Series Regulator: Adjustable Radium FPR with tool-less pressure adjustment
• Inline Gauge: Fuel pressure gauge secures to the filter
• PTFE Hose: 8AN and 6AN PTFE fuel hoses
• Bolt-On Bracket: Chassis-specific filter bracket mounts under the vehicle
• Fuel Compatibility: All gasoline types (unleaded, leaded, oxygenated, premix) plus methanol, ethanol and E85

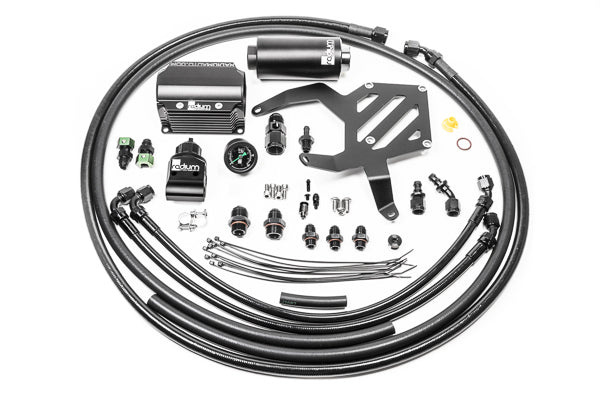

What's Included

• Integrated check valve filter, 6 micron microglass element
• Radium RA-Series fuel pressure regulator
• Fuel pressure gauge
• Heat exchanger filter mount
• Aluminium filter bracket
• SAE quick connects
• Aluminium adapter fittings
• 8AN and 6AN PTFE fuel hoses
• 6AN PushLok hose ends
• 3/8in fuel return hose
• Stainless steel and aluminium hardware

Optional Parts

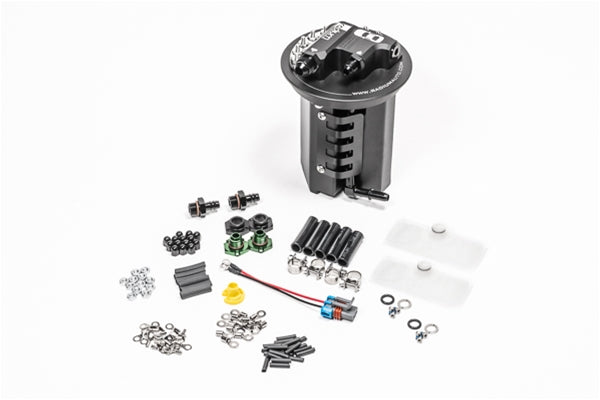

• Radium Fuel Pump Hanger, Subaru BRZ / Toyota 86 (2012-2021) (20-1073) – matching Radium fuel pump hanger for 2012–2021 models
• Radium Fuel Pump Hanger Suit Walbro 460/525/535 - Subaru BRZ ZD8 & Toyota GR86 ZN8 22+ (20-1074) – matching Radium fuel pump hanger for 2022+ models
• Radium Fuel Hanger Plumbing Kit with Stainless Filter: Subaru BRZ/Toyota 86 (20-0966-03) – alternative version with a 10 micron cleanable stainless filter element
• Radium Fuel Rail Kit - Subaru BRZ & Toyota 86 12-21, 22+ (20-0111-02) – Radium port injection fuel rails from the same fuel delivery system

Important Notes

• Not compatible with automatic transmission vehicles – the transmission interferes with the fuel filter and FPR mounting location
• Radium pairs this kit with its 20-1073 (2012–2021) or 20-1074 (2022+) fuel pump hanger in its FR-S/BRZ/GT86/GR86 fuel delivery system – select the hanger to suit your vehicle
• Radium's installation instructions are the fuel pump hanger document, which includes the plumbing kit steps
• Installation instructions are available in the Instructions tab

Vehicle Fitment

• Toyota GT86 2012–2021
• Subaru BRZ 2012–2020
• Scion FR-S 2012–2016
• Toyota GR86 2022+
• Subaru BRZ 2022+
• Manual transmission only – not compatible with automatic transmission
