Radium Fuel Hanger Feed w/Filter- BMW 3 Series E90/E91/E92/E93 05-11

Radium Fuel Hanger Feed w/Filter- BMW 3 Series E90/E91/E92/E93 05-11

Application: BMW E90/E91/E92/E93 3 Series, N54/N55 (not M3) with Radium FHST
Part Type: Fuel hanger feed kit with filter
Part Number: 20-0475-03, 20-0475-05

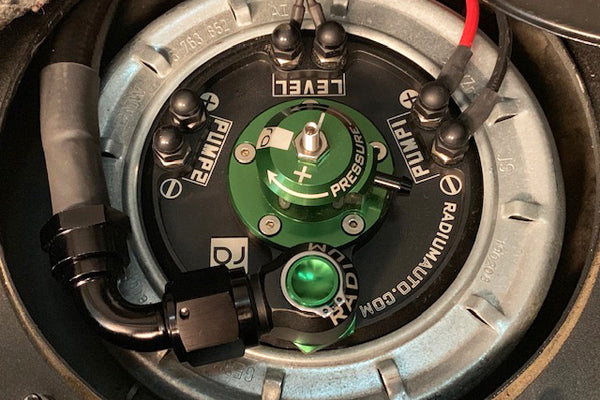

The Radium Fuel Hanger Feed kit connects the outlet of the Radium BMW Fuel Hanger Surge Tank (FHST) to the factory N54/N55 fuel system. An 8AN PTFE feed line attaches to the FHST outlet and clears the OEM fuel pump cover and suspension components with no cutting or drilling.

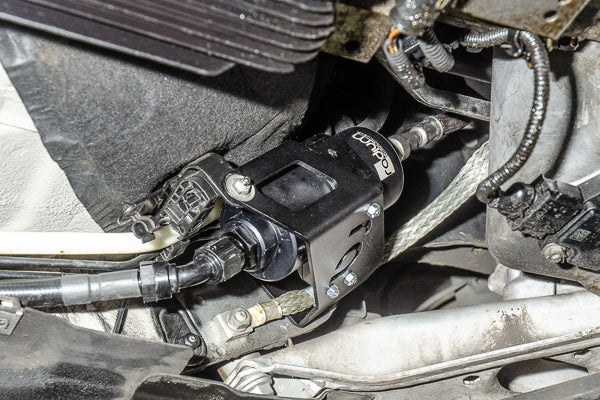

The line runs underneath the vehicle to a high-flow Radium fuel filter, mounted using OEM hardware, and an SAE quick-connect fitting reconnects the OEM N54/N55 fuel line downstream.

Key Features

• 8AN PTFE Feed Line: From the FHST outlet, clearing the pump cover and suspension
• No Cutting or Drilling: Filter mounts using OEM hardware
• OEM Reconnection: SAE quick-connect fitting to the OEM N54/N55 fuel line
• High-Flow Filter: 10 micron stainless or 6 micron microglass element
• Billet Filter Clamp: With BMW-specific filter mount

Available Configurations

• 20-0475-03: high-flow 10 micron stainless steel filter
• 20-0475-05: high-flow 6 micron microglass filter

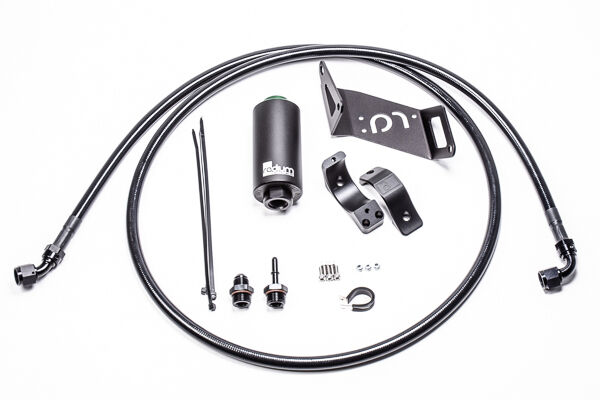

What's Included

• High-flow fuel filter (10 micron stainless or 6 micron microglass, per variant)
• Billet fuel filter clamp
• BMW fuel filter mount
• Black adapter fittings
• Stainless steel hardware

Optional Parts

• Radium BMW E90/E91/E92/E93 FHST-RA Fuel Hanger System (20-1970) – the Radium BMW FHST (20-1970/20-1972) this feed kit connects to

Important Notes

• Not compatible with the E9x M3 due to its exhaust system
• Not compatible with the 1 Series (E81/E82/E86/E87)
• Designed to connect to the Radium BMW Fuel Hanger Surge Tank – sold separately
• Installation instructions are available in the Instructions tab

Vehicle Fitment

• BMW 3 Series E90 – N54 / N55 (excludes M3)
• BMW 3 Series E91 – N54 / N55
• BMW 3 Series E92 – N54 / N55 (excludes M3)
• BMW 3 Series E93 – N54 / N55 (excludes M3)

Not sure if this suits your vehicle? Email sales@coore.com.au and our team will confirm fitment.
