Radium Fuel Filter Mount, Honda Civic (2016+)
Tax included. Shipping calculated at checkout
Description
Radium Fuel Filter Mount, Honda Civic (2016+)
Application: 2016+ Honda Civic (all), including FL5 Civic Type R
Part Type: Fuel filter mount
Part Number: 20-1086

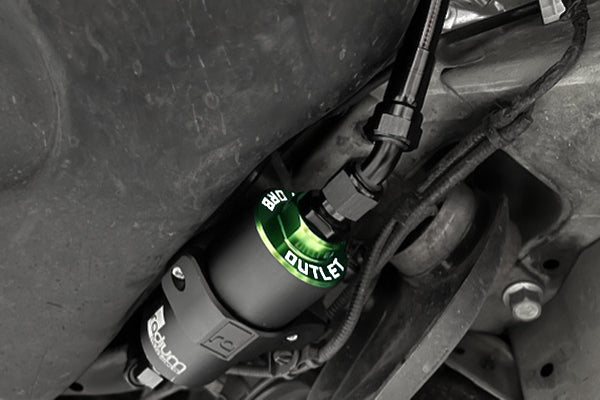

The Radium 20-1086 is the hardware for installing a Radium fuel filter on a 2016+ Honda Civic. One half of the billet aluminium clamp secures to the LH fuel tank mounting tab, replacing the OEM screw with a stainless steel flat head screw, and the opposing half secures the fuel filter with stainless steel screws.
It mounts to an OEM threaded hole with no permanent modifications. The mount also suits the FL5 Civic Type R by using the second countersink hole, which gives the space needed on that fuel tank.
Key Features
- OEM Mounting: Mounts to the OEM threaded hole on the LH fuel tank tab
- No Permanent Modifications: Bolt-on installation
- Billet Clamps: Billet anodised aluminium clamps, 60mm (2.36in) diameter
- FL5 Type R: Second countersink hole provides clearance on the FL5 fuel tank
- Stainless Hardware: Stainless steel screws throughout
What's Included

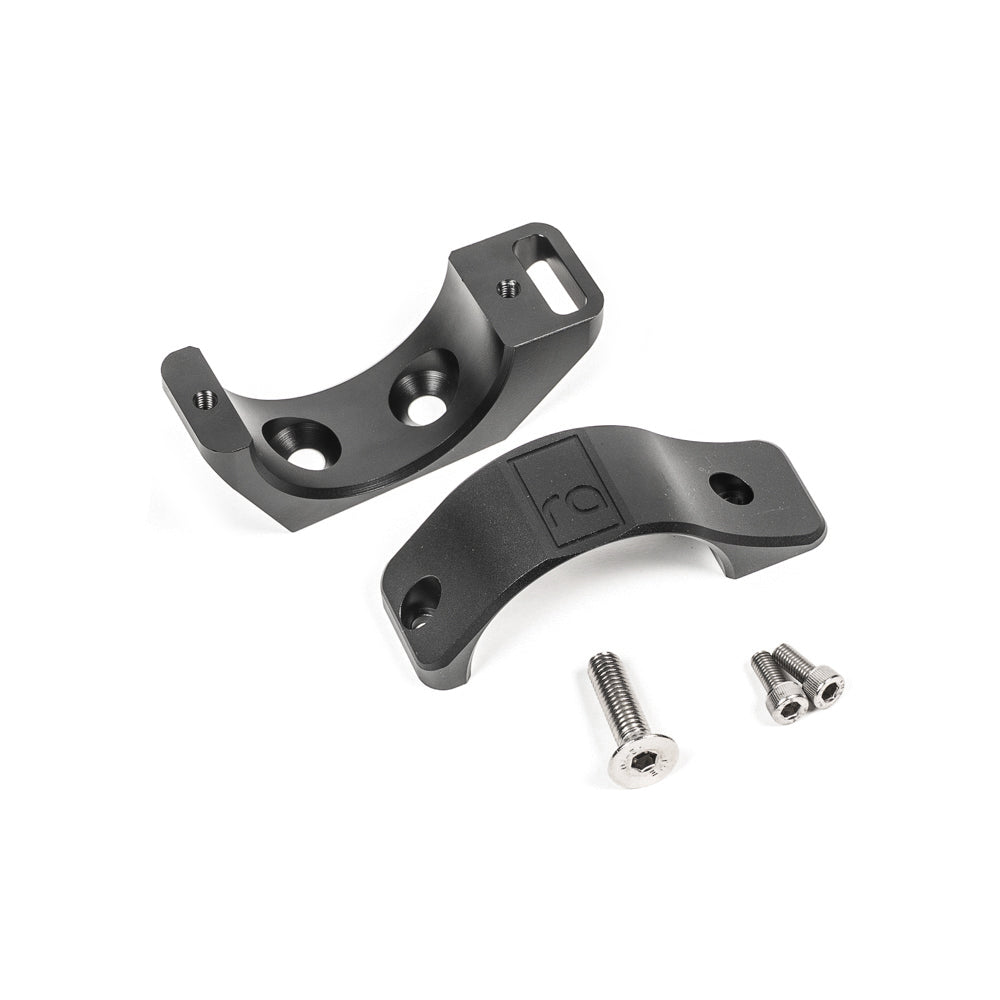

- Anodised aluminium fuel filter mount (two-piece clamp)
- Stainless steel mounting hardware (2 x M5 socket head screws, 1 x countersunk M8x1.25 screw)
Optional Parts
- Radium FPR Mount, Honda Civic (2016+) (20-1087) – Radium regulator mount for the same car
- Radium Fuel & Brake Line Retainer Kit, Honda Civic (2016+) (20-1696) – billet line retainers for an 8AN aftermarket feed line
Important Notes
- Fuel filter, fittings and hose are not included – aftermarket fuel lines and fittings must be configured separately
- The 60mm clamp also suits a Bosch 0 580 254 044 external fuel pump
- On the FL5 Type R use the second countersink hole; all other 2016+ Civics use the standard hole
- Radium lists all 2016+ Civics but gives no RHD-specific statement – confirm RHD fitment with Coore
- Installation instructions are available in the Instructions tab
Vehicle Fitment
- Honda Civic 2016+ (all)
- Honda Civic Type R FL5 (uses the second countersink hole)
Not sure if this suits your vehicle? Email sales@coore.com.au and our team will confirm fitment.
