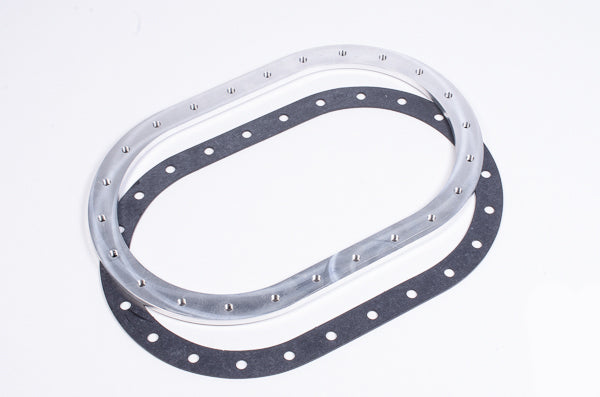

Radium Fuel Cell 24 Bolt Weld Flange with Gasket

Radium Fuel Cell 24 Bolt Weld Flange with Gasket

Application: Universal – custom fabricated aluminium fuel cells (6" x 10" 24-bolt pattern)
Part Type: Weld-in fuel cell flange with gasket
Part Number: 20-0278

The Radium 24-Bolt Weld Flange provides a standard 6" x 10" mounting opening for custom-fabricated aluminium fuel cells. It is CNC machined from 6061 billet aluminium and fly-cut to 0.24" thick, with holes tapped for 1/4"-28 fasteners.

Once welded into an aluminium tank, the flange accepts Radium FCST and FCST-X fuel cell surge tanks or any industry-standard 6" x 10" 24-bolt fuel cell drop-in. A Radium 18-0015 FKM gasket is included.

Key Features

• Billet Construction: CNC machined from 6061 billet aluminium
• Fly-Cut Flat: Fly-cut to 0.24" thickness for a flat sealing surface
• Industry Standard Pattern: 6" x 10" 24-bolt pattern tapped 1/4"-28
• Weld-In Design: Supplied raw for welding into custom aluminium tanks
• Gasket Included: Radium 18-0015 FKM gasket
• Radium Compatible: Suits all Radium fuel cell surge tanks

What's Included

• Fuel cell weld flange, raw aluminium
• Radium 18-0015 6x10 24-bolt gasket

Optional Parts

• Radium Fuel Cell 24 Bolt Flange Gasket (18-0015) – spare reusable FKM gasket

Important Notes

• Welding must be carried out by an experienced welder who can prevent the flange warping
• Fuel cell and drop-in are not included

Vehicle Fitment

• Custom fabricated aluminium fuel cells and tanks
• Radium FCST and FCST-X fuel cell surge tanks
• Industry-standard 6" x 10" 24-bolt fuel cell drop-ins

Not sure if this suits your vehicle? Email sales@coore.com.au and our team will confirm fitment.
