Radium Engineering Fuel Rails – Ford 302/351 Windsor

Radium Engineering Fuel Rails – Ford 302/351 Windsor

Application: Ford 302 / 351 Windsor EFI (see Vehicle Fitment)
Part Type: Fuel rails (upgrade rails)
Part Number: 20-1302

Manufactured with large 5/8in internal bores, Radium Engineering 20-1302 fuel rails can support all necessary engine power requirements on Ford 302 and 351 Windsor EFI engines. They are CNC machined from 6061 aluminium, black anodised and laser etched, with three 8AN ORB ports per rail (six total). The physical profile is designed to maximise clearance with the distributor while supporting maximum flow.

Injectors are installed perpendicular to the lower intake manifold injector seats, exactly like OEM, with no spacers required. The rails are compatible with all fuel types including E85, and the ports are tapped for 8AN ORB and 1/8 NPT so fittings can be selected to suit the application.

Key Features

• Large Bore: 5/8in internal bores support all necessary engine power requirements
• Six 8AN ORB Ports: Three per rail, also tapped for 1/8 NPT
• Distributor Clearance: Profile designed to clear the distributor while maximising flow
• OEM Injector Orientation: Injectors sit perpendicular to the LIM seats – no spacers required
• Quality Finish: CNC machined 6061 aluminium, black anodised and laser etched
• Fuel Compatibility: All fuel types including E85

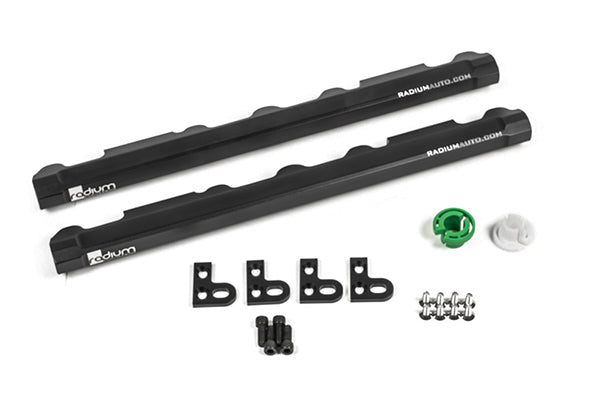

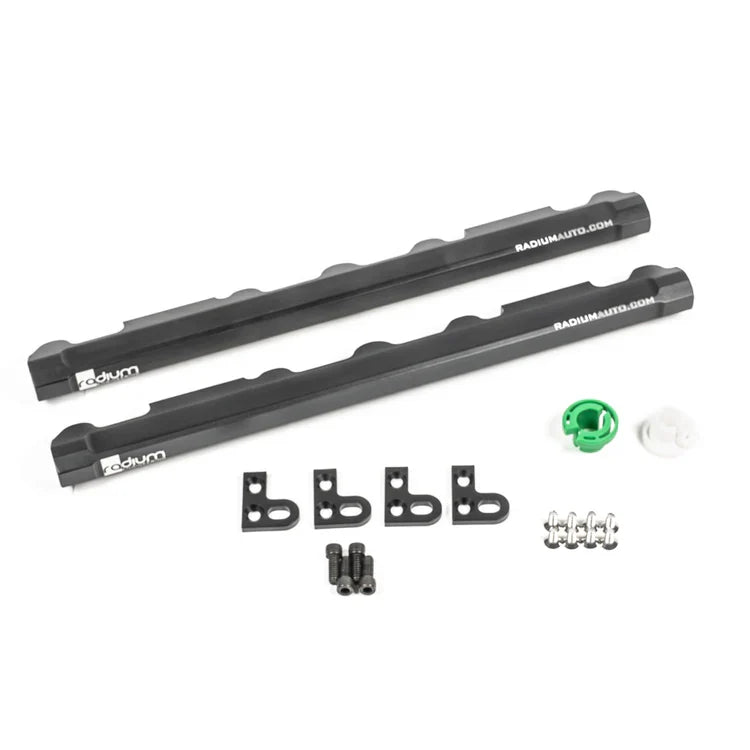

What's Included

• Black anodised, laser etched aluminium fuel rails
• Black anodised aluminium fuel rail mounts
• Black oxide stainless steel 1/4"-20 screws
• Stainless steel M5x0.8mm screws
• 1/2in disconnect tool
• 5/8in disconnect tool

Optional Parts

• Radium Engineering Fuel Rail Plumbing Kit – Ford 302/351 Windsor (20-1302-PK) – regulator, gauge, hoses and fittings to plumb these rails
• Radium Bosch EV1 Injector Connector Adapter (17-0064) – may be required if injector connectors interfere with the lower intake manifold (sold individually)

Important Notes

• Upgrade rails – OEM or OEM-equivalent injectors must be used, matching the OEM height and upper/lower O-ring diameters and styles
• Radium does not make injector recommendations – consult your tuner and the injector manufacturer
• Compatible intake manifolds: 302 HO, 302 Truck, 351 Windsor Lightning, Explorer, Cobra, GT40
• Fittings are not included; allow ample clearance around the ports for regulators, gauges and pulse dampers
• Installation instructions are available in the Instructions tab

Vehicle Fitment

• 1988–1996 Ford Bronco
• 1988–1996 Ford E-Series
• 1996–2001 Ford Explorer
• 1991–2002 Ford Fairlane
• 1991–2002 Ford Falcon
• 1988–1997 Ford F-Series
• 1988–1991 Ford LTD Crown Victoria
• 1986–1995 Ford Mustang
• 1993–1995 Ford Mustang Cobra and Cobra R
• 1991–1993 Ford Thunderbird
• 1987–1992 Lincoln Mark VII
• 1986 Mercury Capri
• 1988–1991 Mercury Colony Park
• 1991–1993 Mercury Cougar
• 1988–1991 Mercury Marquis
• 1997–2001 Mercury Mountaineer
• 1990–1996 Panoz Roadster

Not sure if this suits your vehicle? Email sales@coore.com.au and our team will confirm fitment.
