Radium Dual Fluid Lock Catch Can Kit - Ford Focus RS LZ 16-17

Radium Dual Fluid Lock Catch Can Kit - Ford Focus RS LZ 16-17

Application: Ford Focus RS (2016-2018) EcoBoost
Part Type: Fluid Lock dual (PCV and CCV) oil catch can kit
Part Number: 20-0328-FL

Radium catch cans separate oil and water condensate from crankcase gases before they reach the intake, preventing oil build-up in the intake, intercooler, throttle body and intake manifold. It is a closed system, so oil vapours are kept out of the cabin. This dual kit combines the 20-0315-FL PCV kit and 20-0316-FL CCV kit to isolate both breather circuits.

On the PCV side, the can runs inline with the PCV valve and retains factory function. At idle, steady cruise and deceleration the PCV hose sees metered vacuum that can draw crankcase vapour and oil sludge into the intake manifold after a hard run – the catch can captures it first. Because Radium catch cans are pressure sealed, connection to the intake manifold is permitted on boosted applications.

On the crankcase (CCV) side, the can runs inline with the crankcase breather port. At low load this line sees atmospheric pressure, but at wide-open throttle crankcase flow is high and can leave oil and sludge in the intake pipe and intercooler, reducing intercooler efficiency and performance.

Key Features

• Fluid Lock System: Patented design prevents the reservoir overfilling and holds collected fluid until emptied
• Large Ports: 10AN ORB inlet and outlet ports
• Drain Port: 4AN ORB drain port
• Two-Step Baffling: Two-stage oil separation
• O-Ring Sealed Dipstick: Check fluid level without removing the can
• Capacity: 207ml (7 fl oz)
• Direct Fit: No drilling required

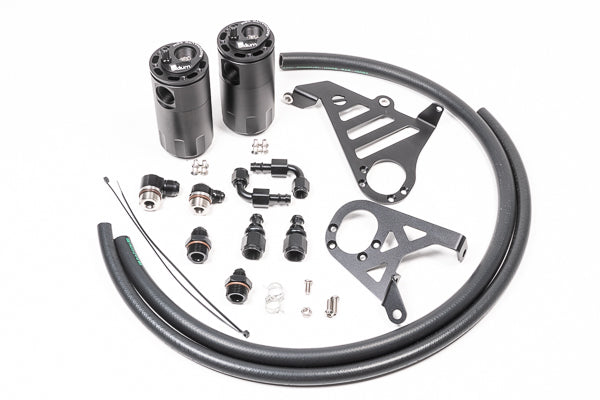

What's Included

• Fluid Lock catch cans (x2)
• Anodised aluminium mount brackets (x2)
• 3/8" and 1/2" PCV hoses
• 10AN ORB to 6AN and 10AN ORB to 8AN male fittings
• 10AN ORB to 6AN and 10AN ORB to 8AN male swivel fittings
• Pushlok hose ends (x4)
• Mounting hardware

Important Notes

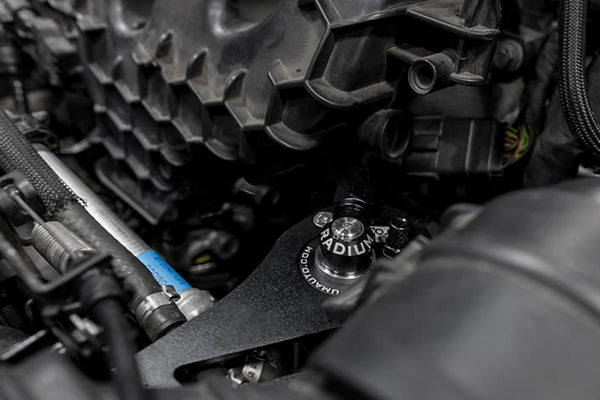

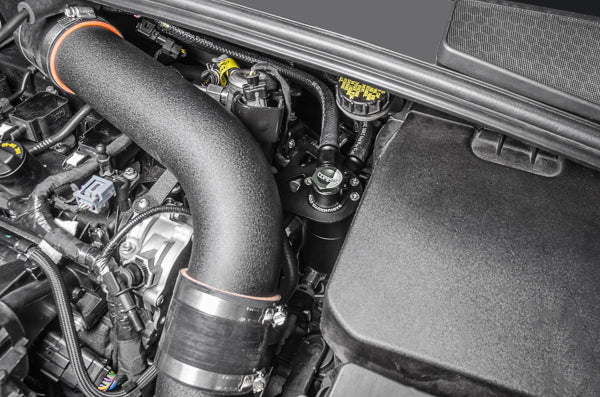

• The PCV can mounts on the front LH core support near the radiator; the CCV can mounts on the back LH side of the engine bay
• The Focus ST uses the 20-0358-FL dual kit
• There is no fixed emptying interval – check the dipstick from 3-4 weeks of driving, then as needed; PCV cans typically collect more than CCV cans
• Excessive oil collection can indicate an engine problem such as excessive blow-by or an overfilled oil level
• Empty by unscrewing the reservoir, or fit a Radium Petcock Drain Kit (sold separately) where there is space
• Installation instructions are available in the Instructions tab

Vehicle Fitment

• Ford Focus RS EcoBoost (2016-2018)

Not sure if this suits your vehicle? Email sales@coore.com.au and our team will confirm fitment.
