Radium 52mm Fuel Level Gauge, 0-90 Ohm

Radium 52mm Fuel Level Gauge, 0-90 Ohm

Application: Universal – any 0-90 ohm fuel level sensor
Part Type: 52mm electric fuel level gauge
Part Number: 20-1847

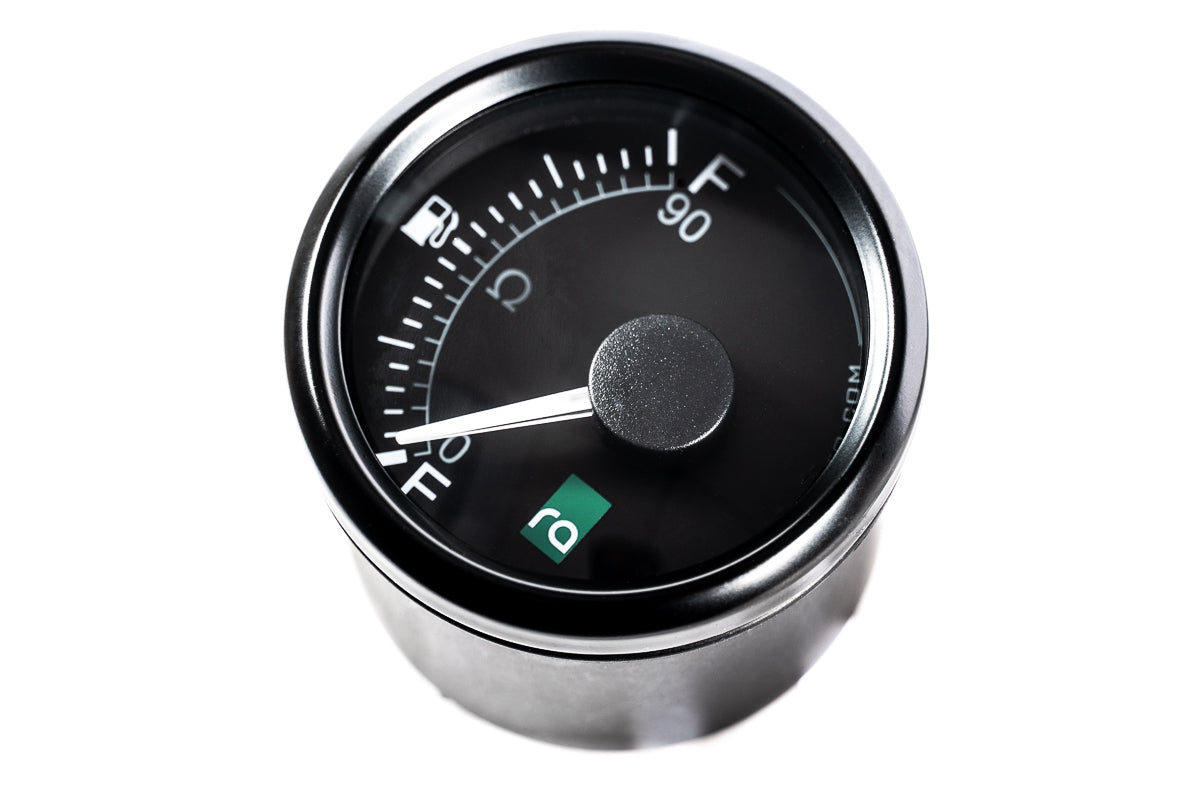

The Radium 20-1847 52mm Fuel Level Gauge works with any 0-90 ohm fuel level sensor. It displays EMPTY to FULL along with the corresponding 0-90 ohm reading, using a stepper motor movement behind curved anti-fog glass.

A simple toggle of a button selects one of 8 illumination colours, and the removable 4-pin connector simplifies installation. The gauge is IP67 rated and runs on 9-32VDC.

Key Features

• 0-90 Ohm: Works with any 0-90 ohm fuel level sensor; shows EMPTY to FULL plus the ohm reading

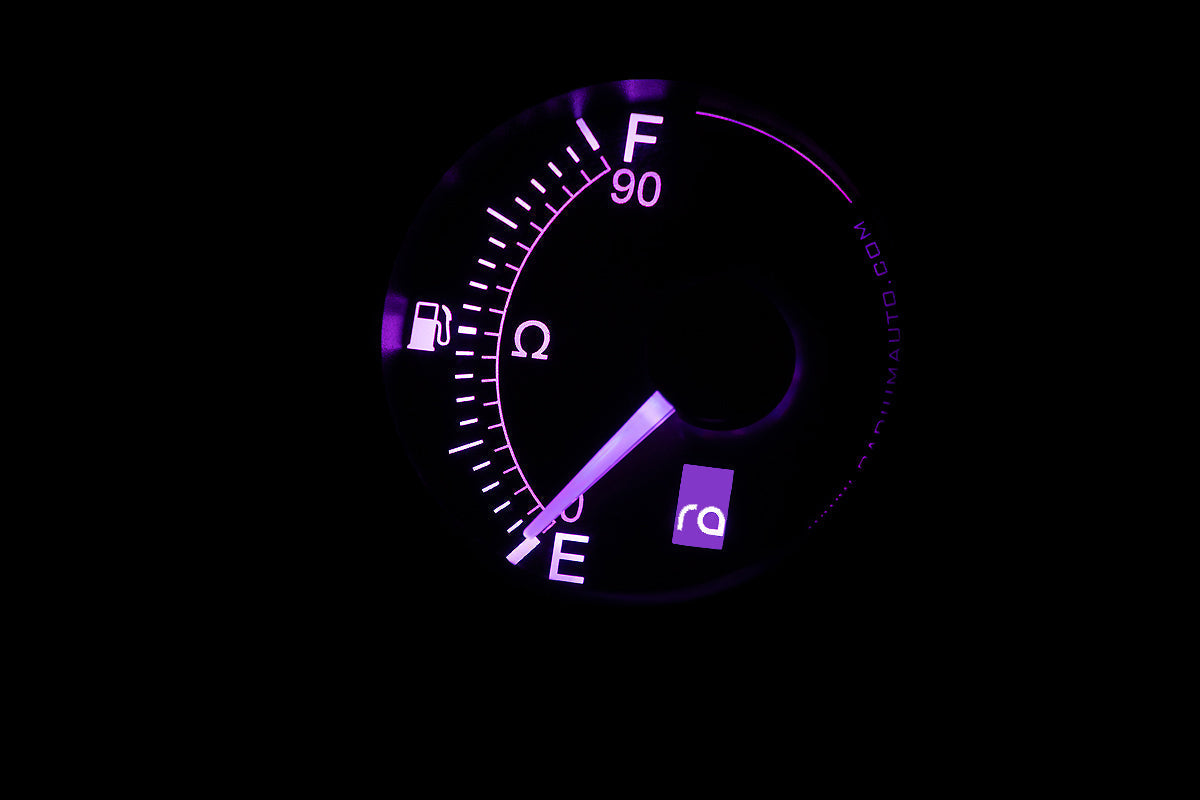

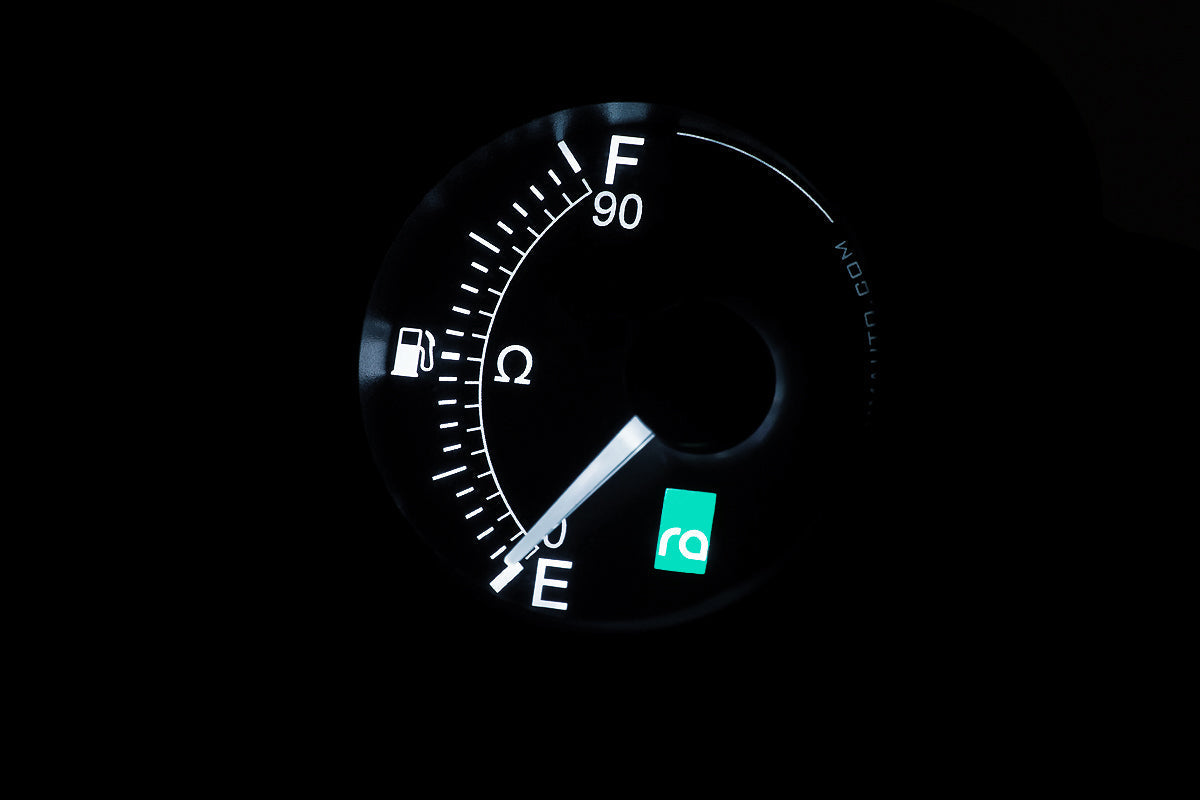

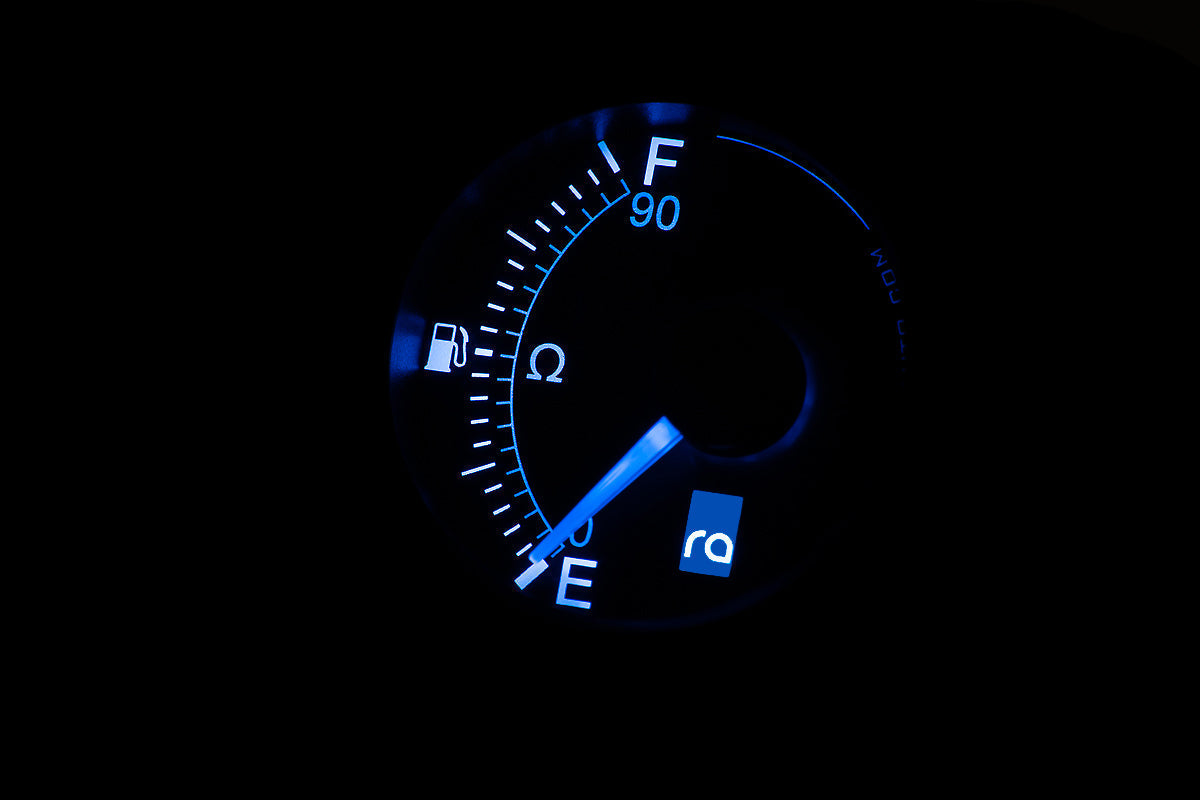

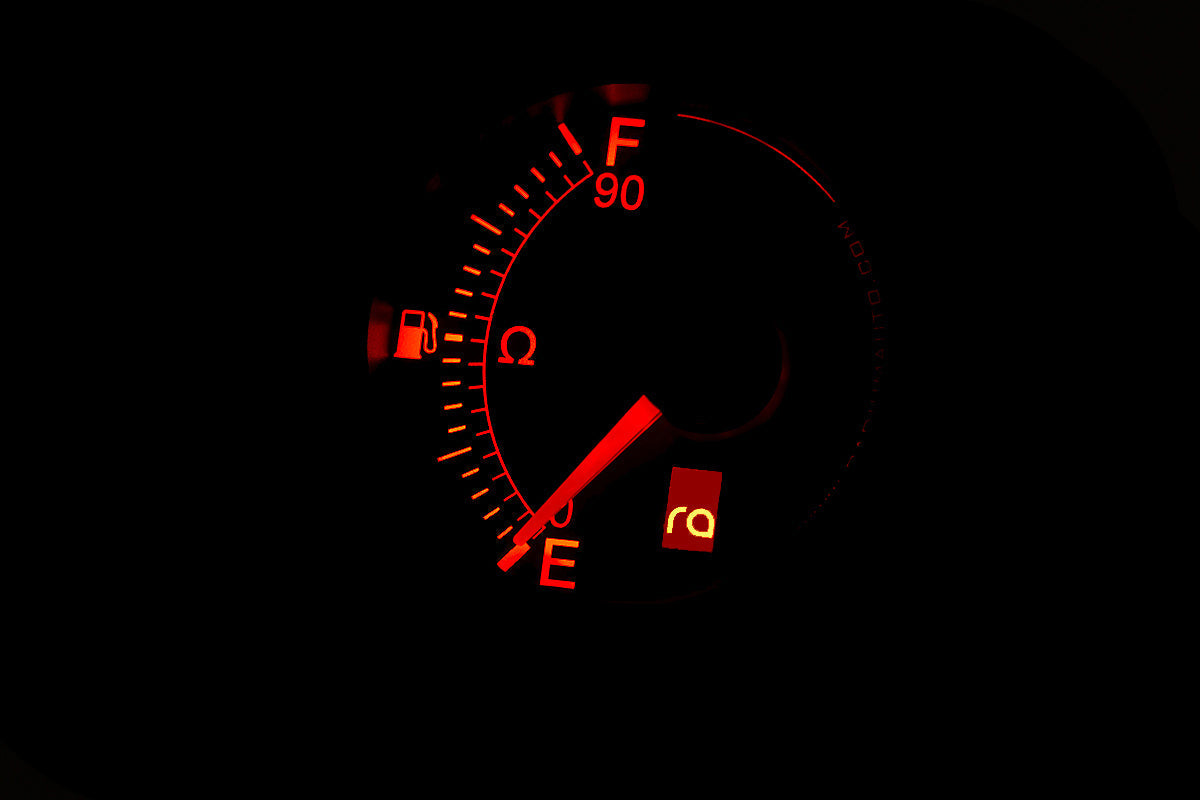

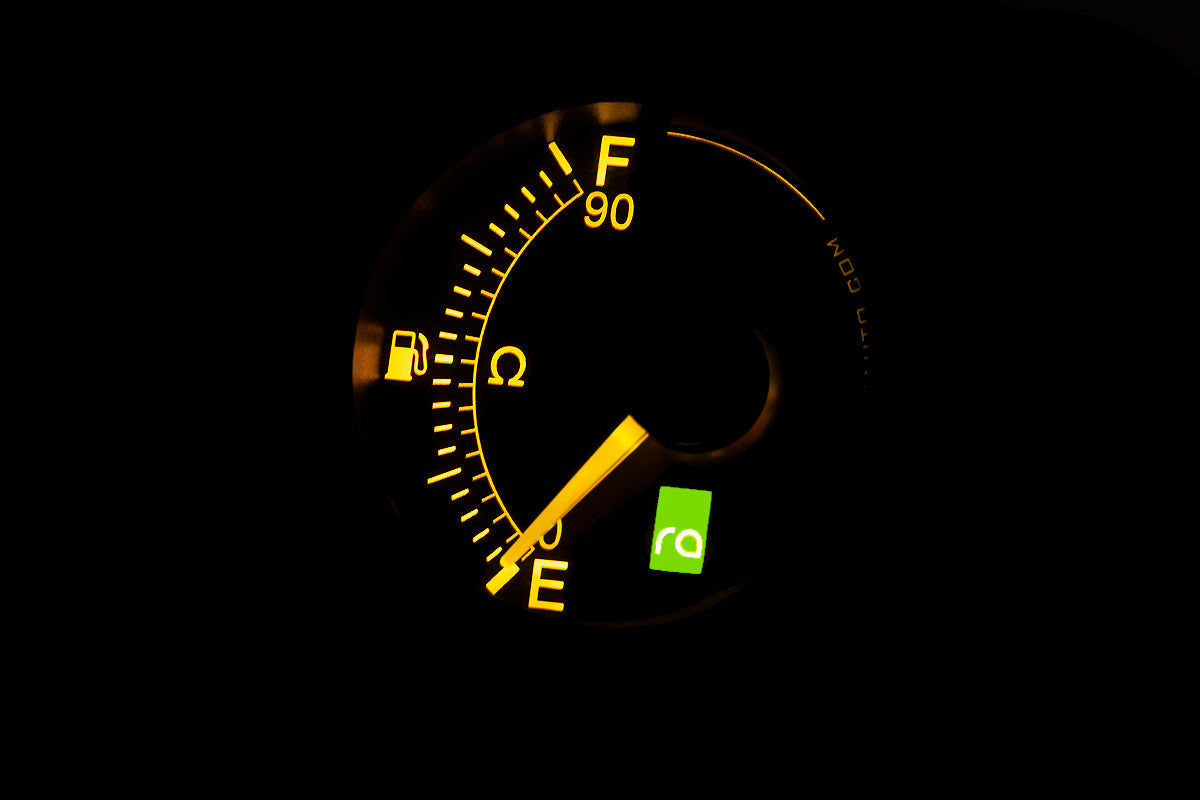

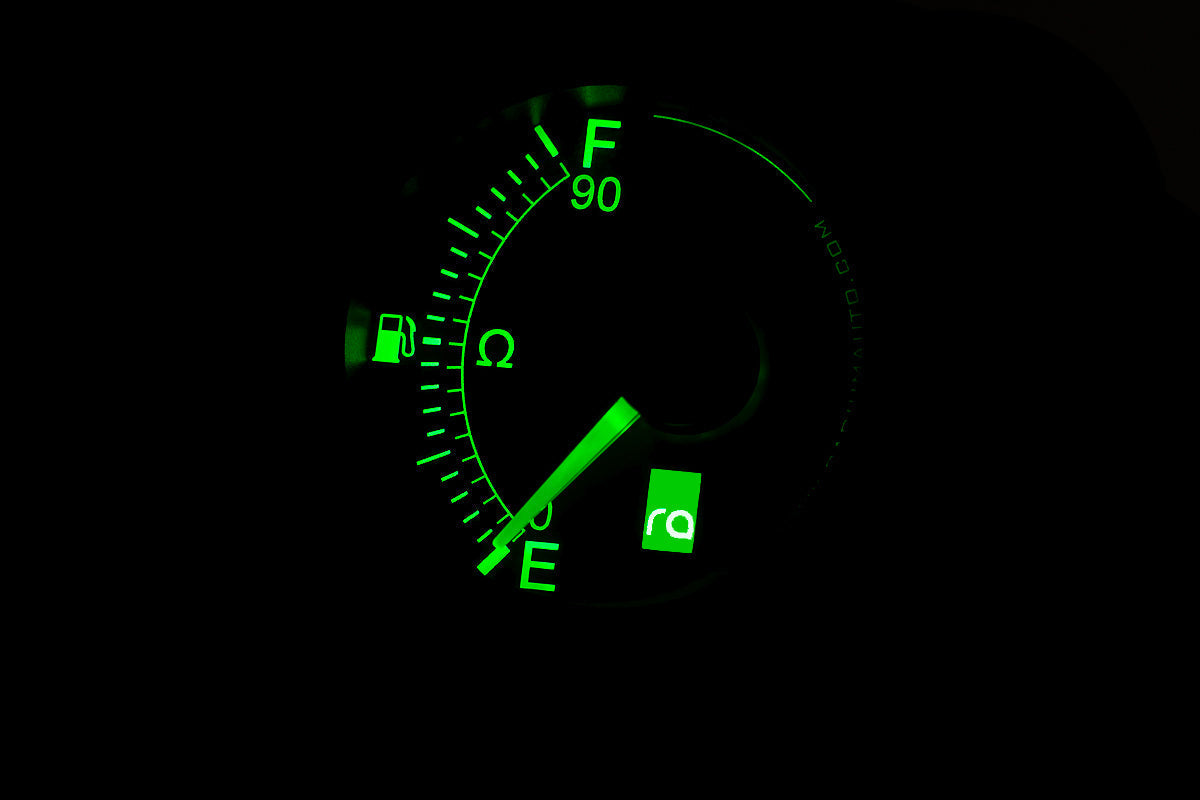

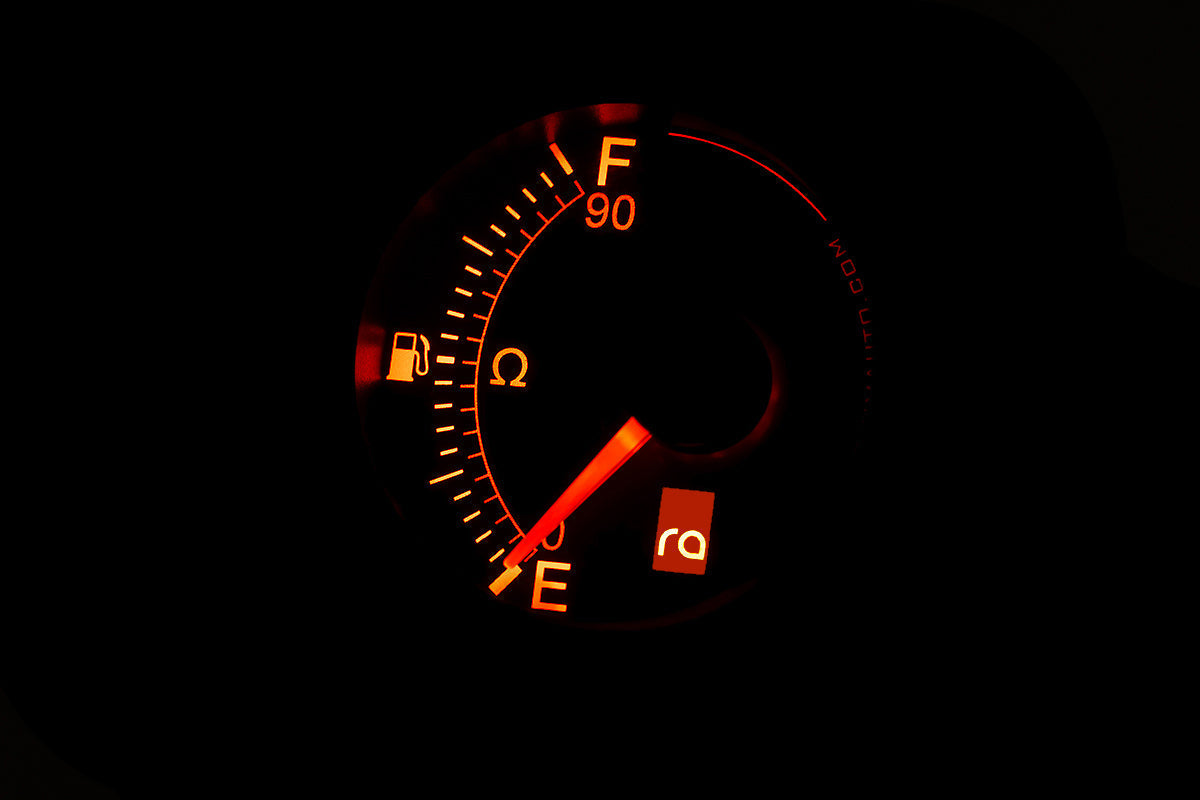

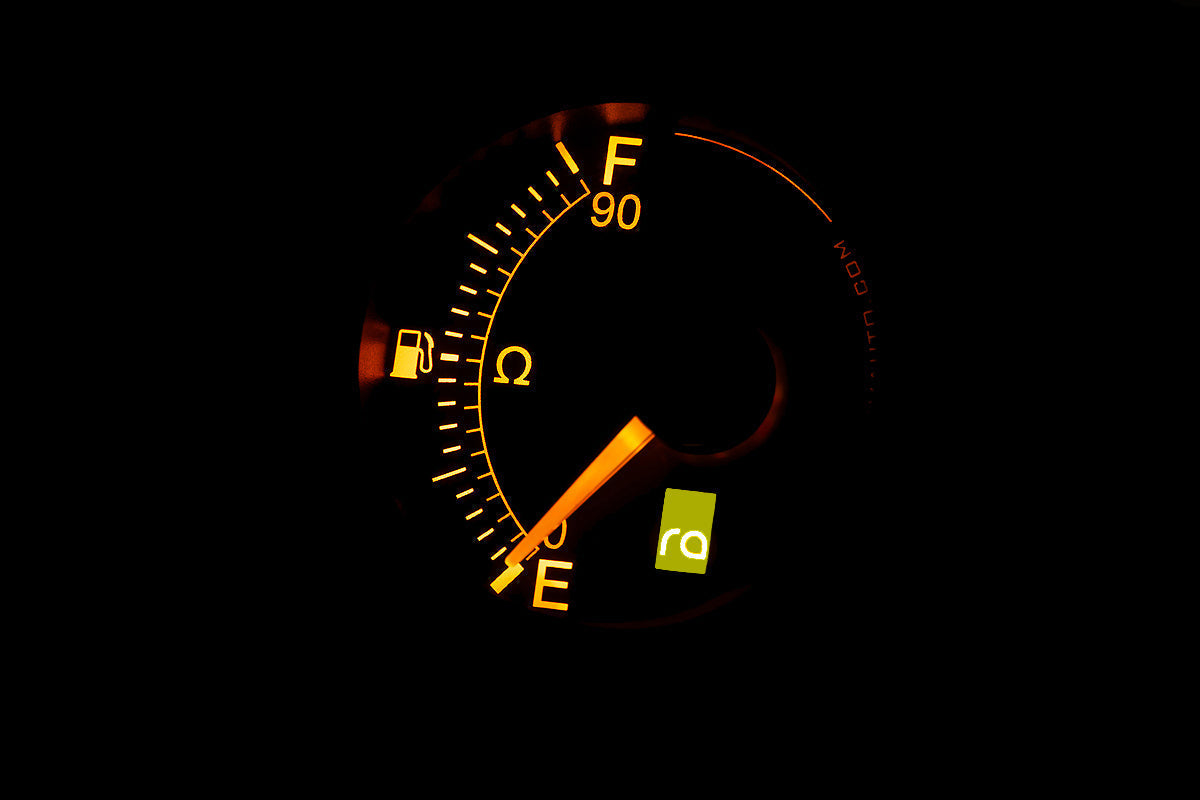

• 8 Colours: Button-selectable white, amber, yellow, rust, purple, red, green or blue illumination
• IP67: Water resistant to 1m and dust-tight
• Stepper Motor: Stepper motor movement with curved, anti-fog glass
• Easy Install: Removable 4-pin connector with flying lead

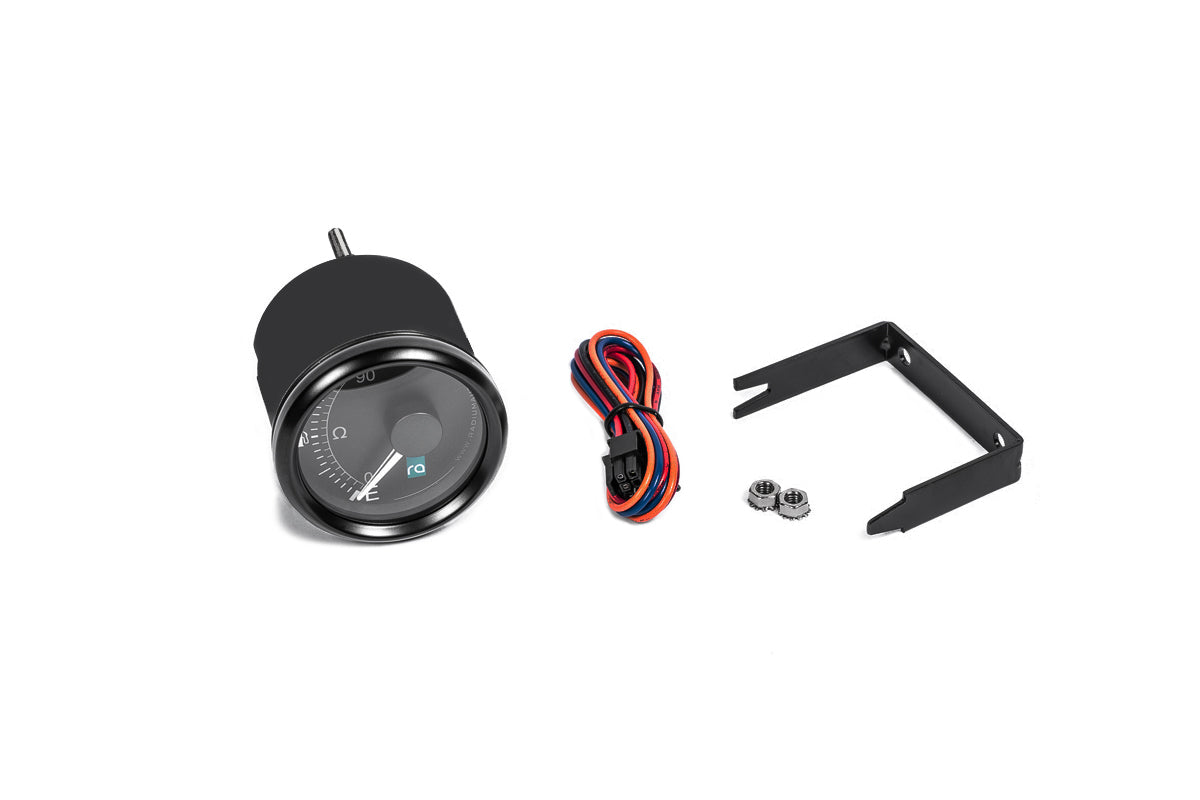

What's Included

• Fuel level gauge
• Mounting bracket
• Mounting hardware
• Wire connector flying lead

Optional Parts

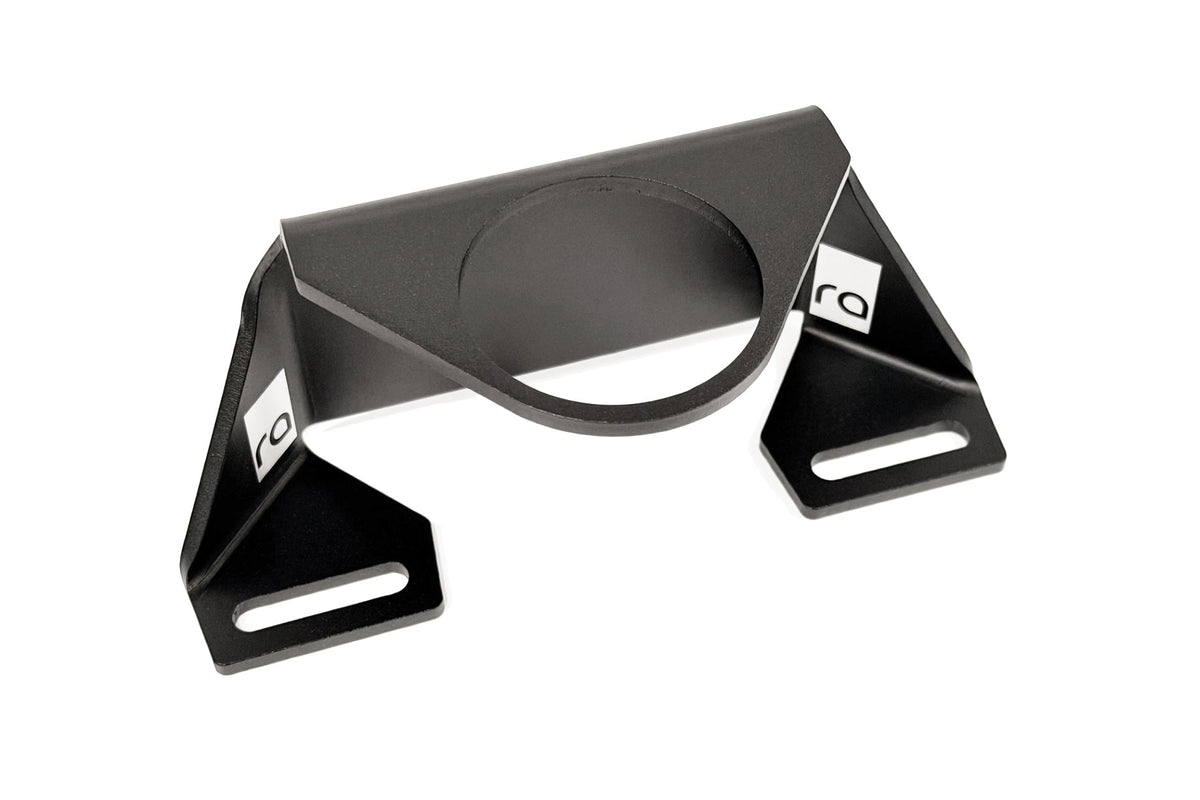

• Radium Fuel Level Gauge Mount (20-2585) – anodised bracket that mounts the gauge to the perimeter of a Radium fuel cell

Important Notes

• Available with black bezel and black face only

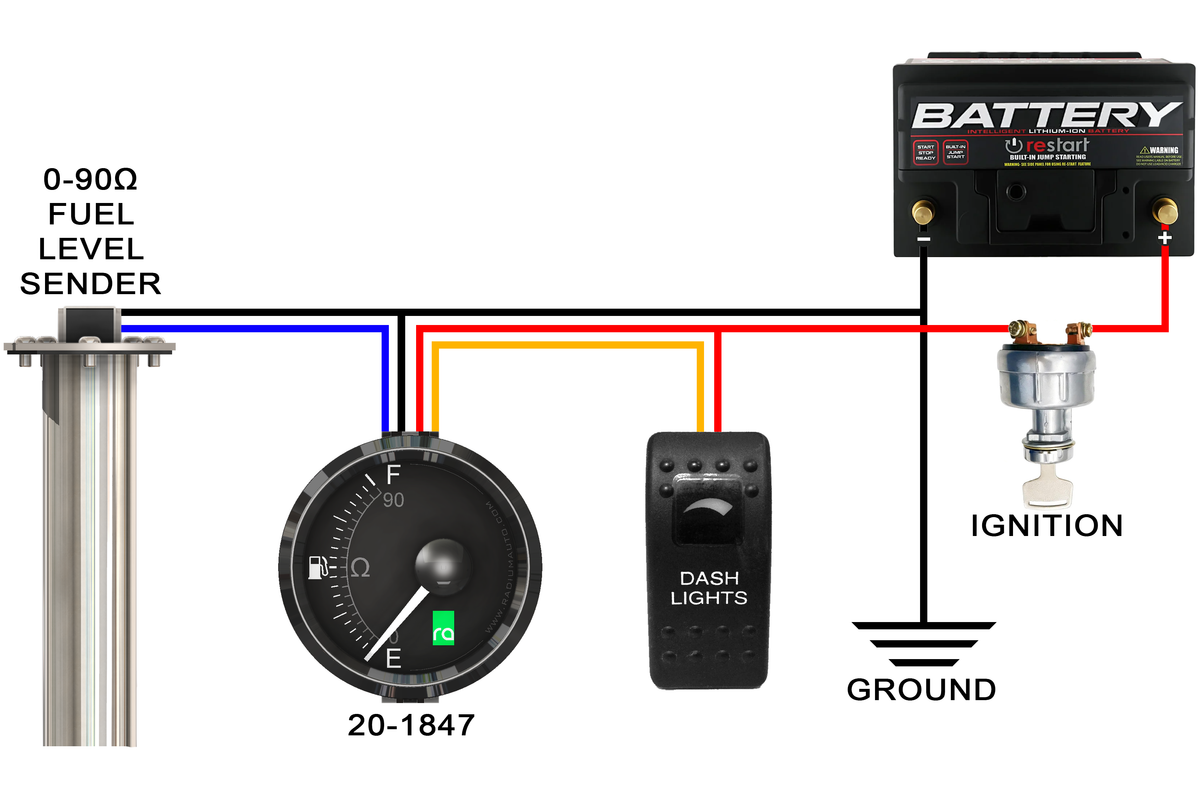

• Fit a 1-3 amp fuse on the power wire
• To have the backlight on with the ignition, splice the orange wire to the red wire

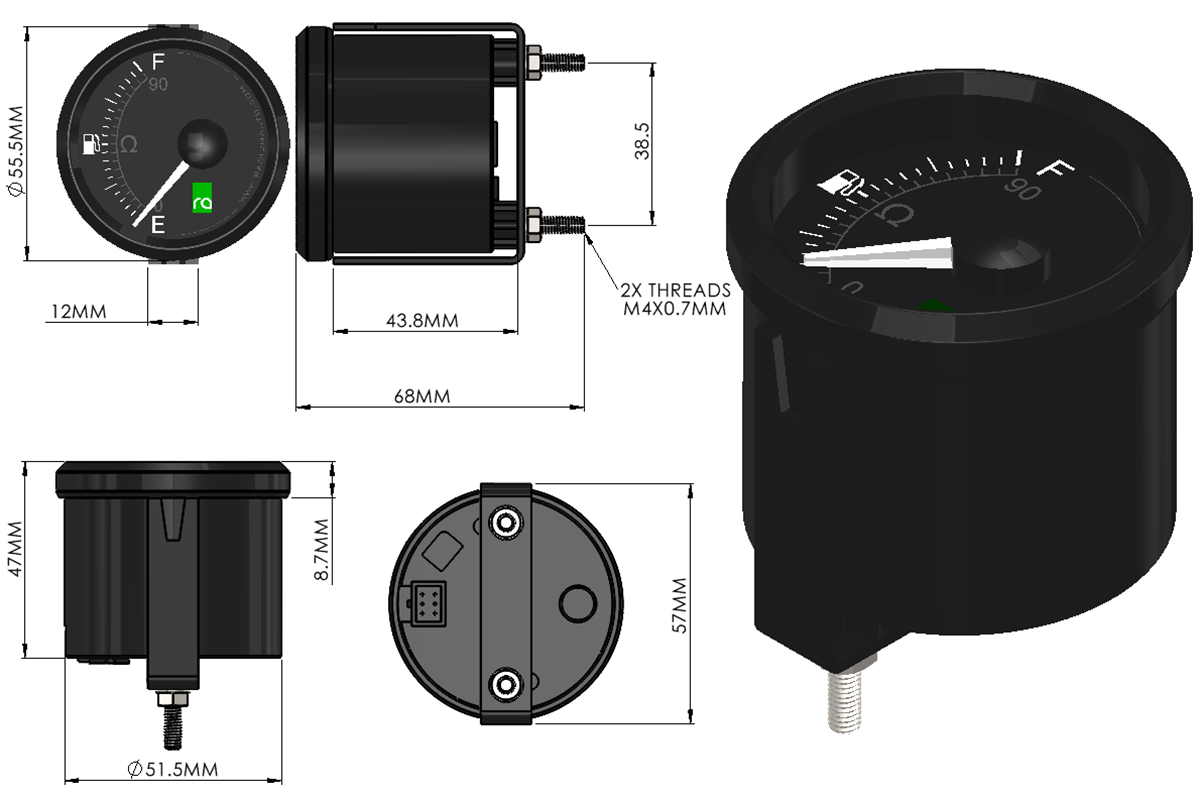

• Requires a 52-53mm mounting hole
• Installation instructions are available in the Instructions tab

Vehicle Fitment

• Universal – see Application

Not sure if this suits your vehicle? Email sales@coore.com.au and our team will confirm fitment.
