Radium 10in Fuel Pump Connector Harness - Walbro E85

Radium 10in Fuel Pump Connector Harness - Walbro E85

Application: Walbro (TI Automotive) E85 fuel pumps – Radium hangers, surge tanks, FCST units or universal use
Part Type: Fuel pump connector harness
Part Number: 17-0049-00

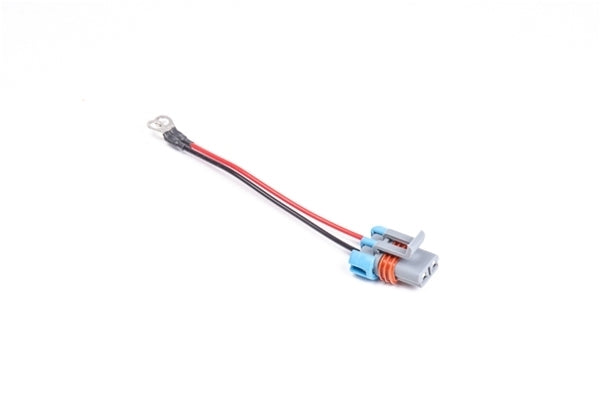

The Radium 17-0049-00 (Walbro E85) is a 157mm (6.2in) fuel pump connector harness built from 14 AWG ETFE wire with #10 screw ring terminals.

Radium's fuel pump connector harnesses replace the wiring harnesses used in Radium hangers, fuel pump install kits, surge tanks and FCST units, and can also be used universally. All are built from ETFE wire, which is safe for submersion in all popular fuel types.

Key Features

• Length: 157mm (6.2in) end to end
• 14 AWG ETFE Wire: Safe for submersion in all popular fuel types
• Ring Terminals: #10 screw ring terminals
• Replacement or Add-On: Suits Radium hangers, fuel pump install kits, surge tanks and FCST units, or universal use

Important Notes

• Overall length is 157mm (6.2in) end to end

Vehicle Fitment

• Compatible pump: Walbro (TI Automotive) F90000267 (416LPH)
• Compatible pump: Walbro (TI Automotive) F90000274 (416LPH)
• Compatible pump: Walbro (TI Automotive) F90000285 (450LPH)
• Compatible pump: Walbro (TI Automotive) F90000295 (537LPH)

Not sure if this suits your vehicle? Email sales@coore.com.au and our team will confirm fitment.
