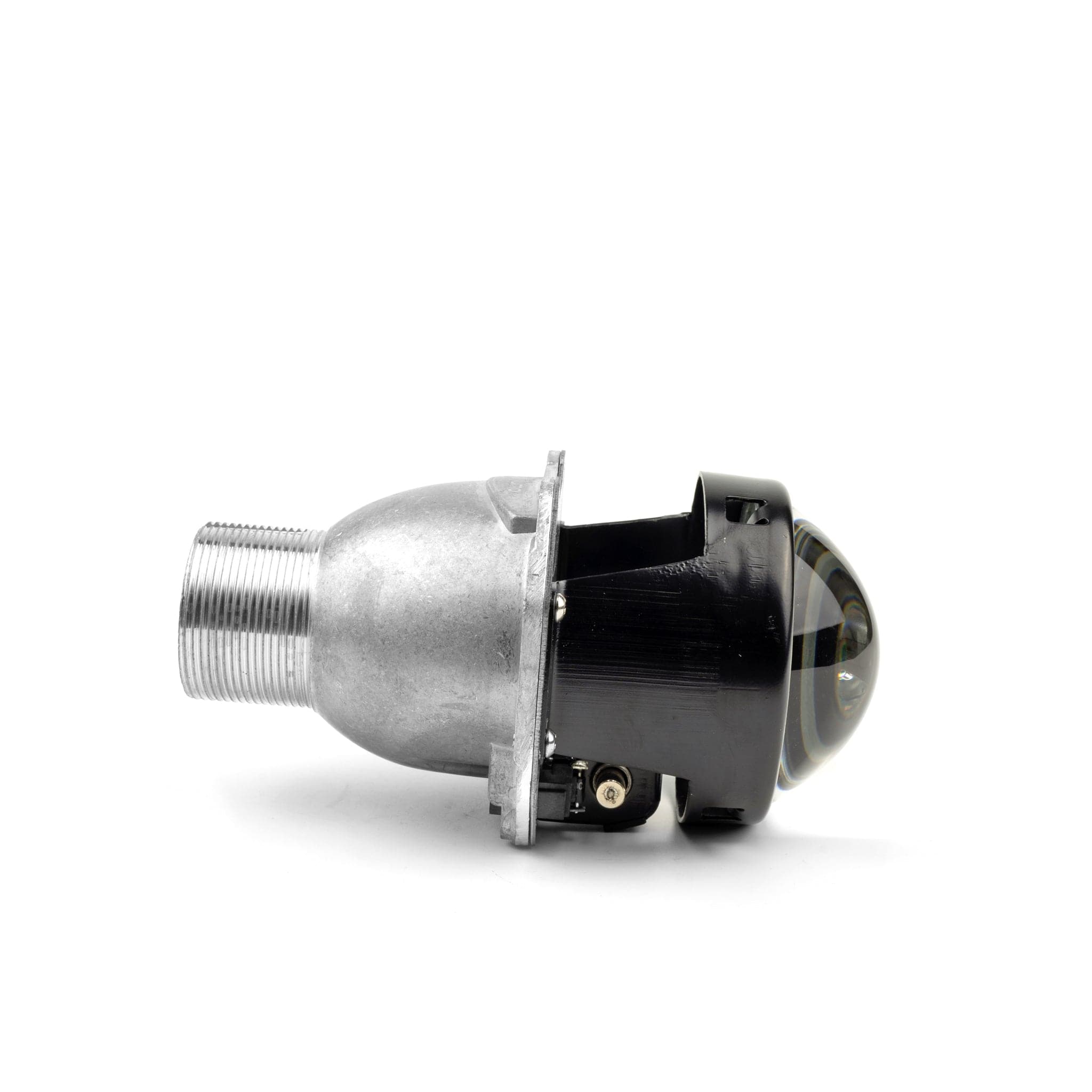

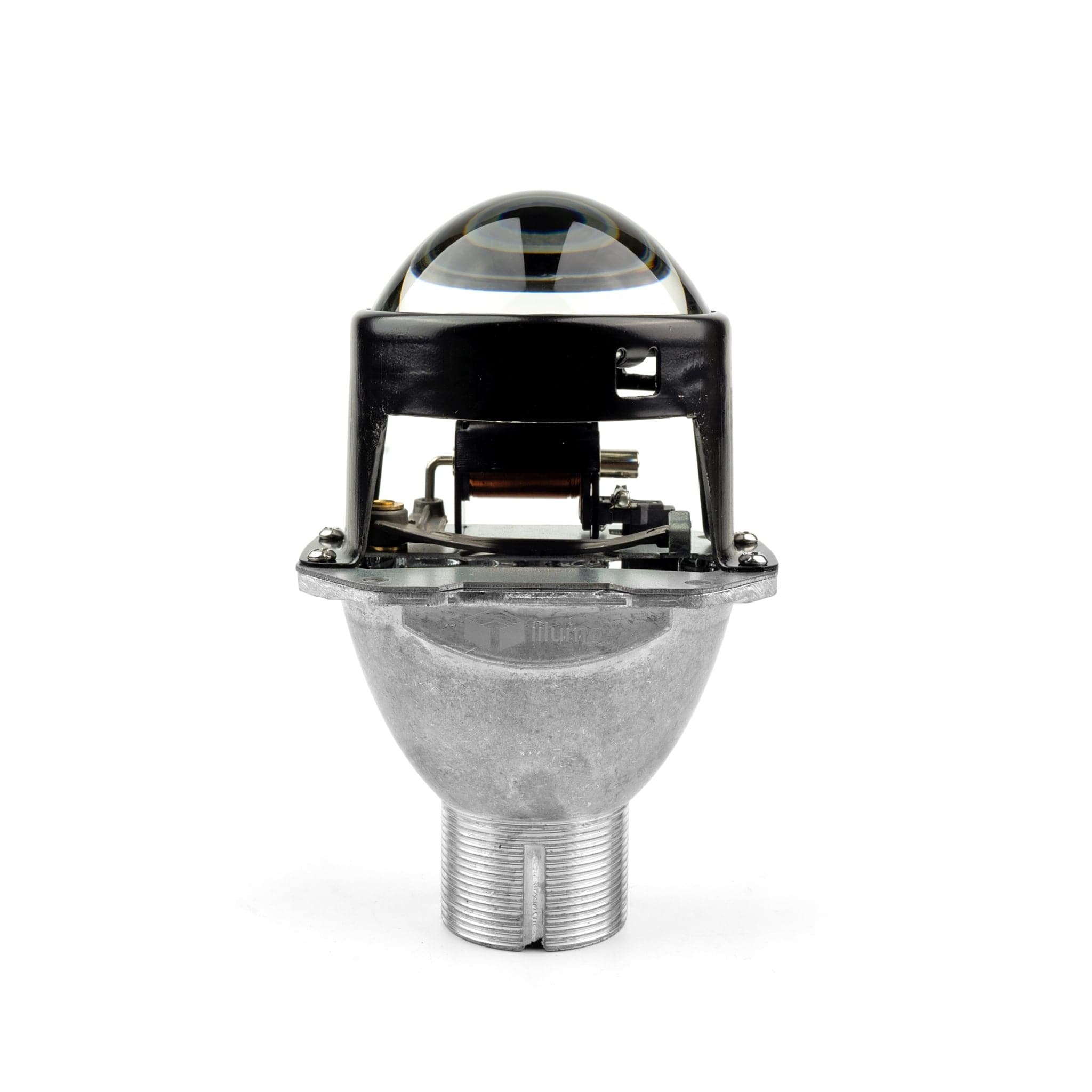

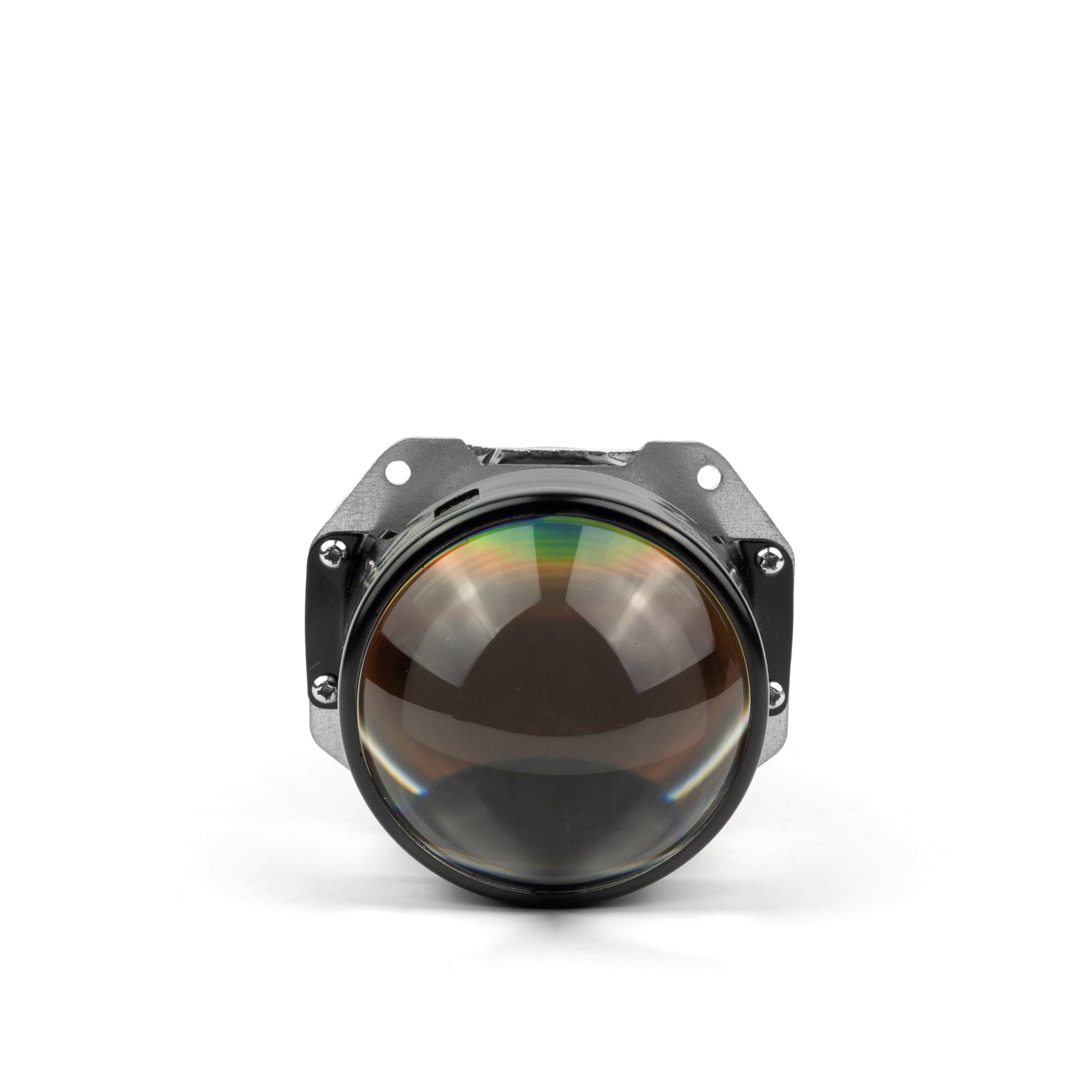

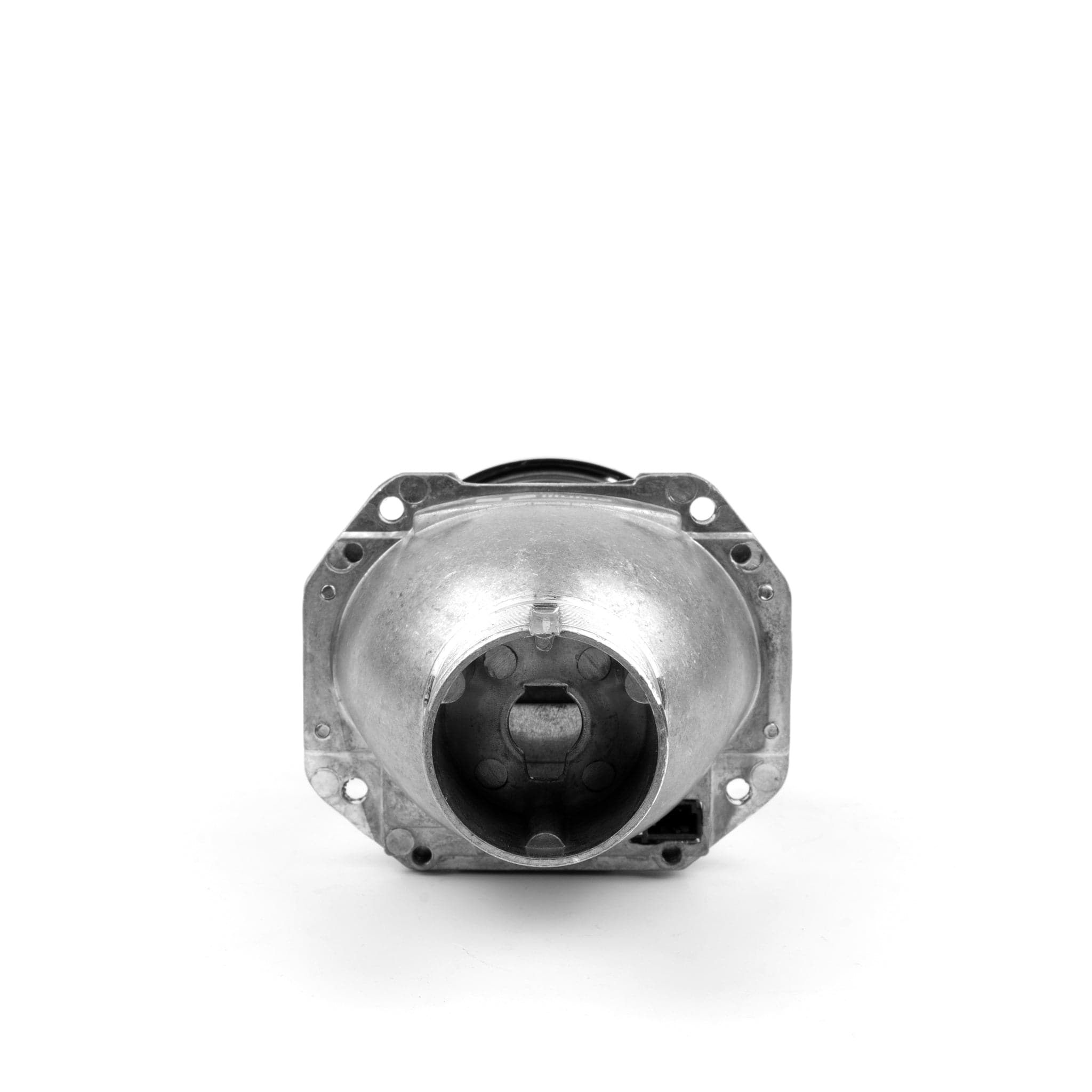

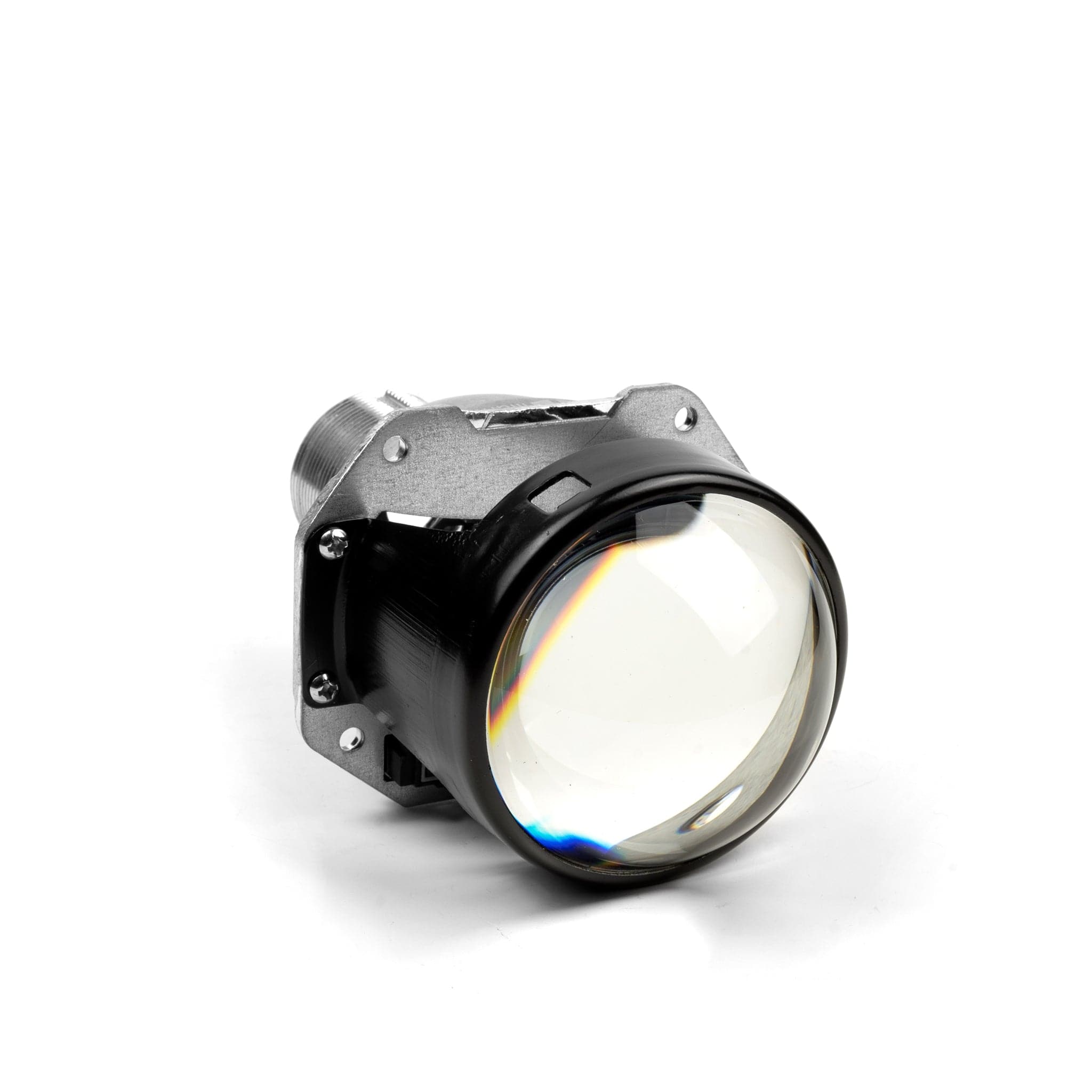

BI-XENON PROJECTORS: iiMD2S

This is the highest performing unit we have seen of this size. If you are familiar with the iiMH1, the dimensions of the iiMD2S Bi-xenon projectors are nearly identical. These use the exact same mounting points and overall foot print as an iiMH1 projector. The main difference is the threaded shaft size is larger in diameter; which is 35mm vs the 20mm found on the iiMH1.

The iiMD2S will fit using the thread shaft method on reflectors just like the H1, or mount up to iiMH1 bolt pattern retrofit brackets.

The iiMD2S provides a clean sharp cutoff line that does not bow down on the edges. This gives you excellent width; much better than most aftermarket D2S projectors on the market. Plenty of colour at the cut off.

SPECIFICATIONS

• Height: 73mm
• Max Depth: 139mm
• Lens Diameter: 2.5"
• Mounting Shaft Diameter: 35mm
• Lock Nut Size: 46mm
• Housing Depth Minimum: 115mm
• Lens: 100% clarity Kuria Optics clear glass lens
• RHD cut-off shield
• Not ADR approved
• Exceeds DOT requirements

COMPATIBILITY

• Bulbs: D2S/D2H HID bulbs
• HID systems: 35-55W
• Shrouds: All

WARRANTY

• 3 Year Warranty

INCLUDED

• 2 x iiMD2S bi-xenon HID projectors

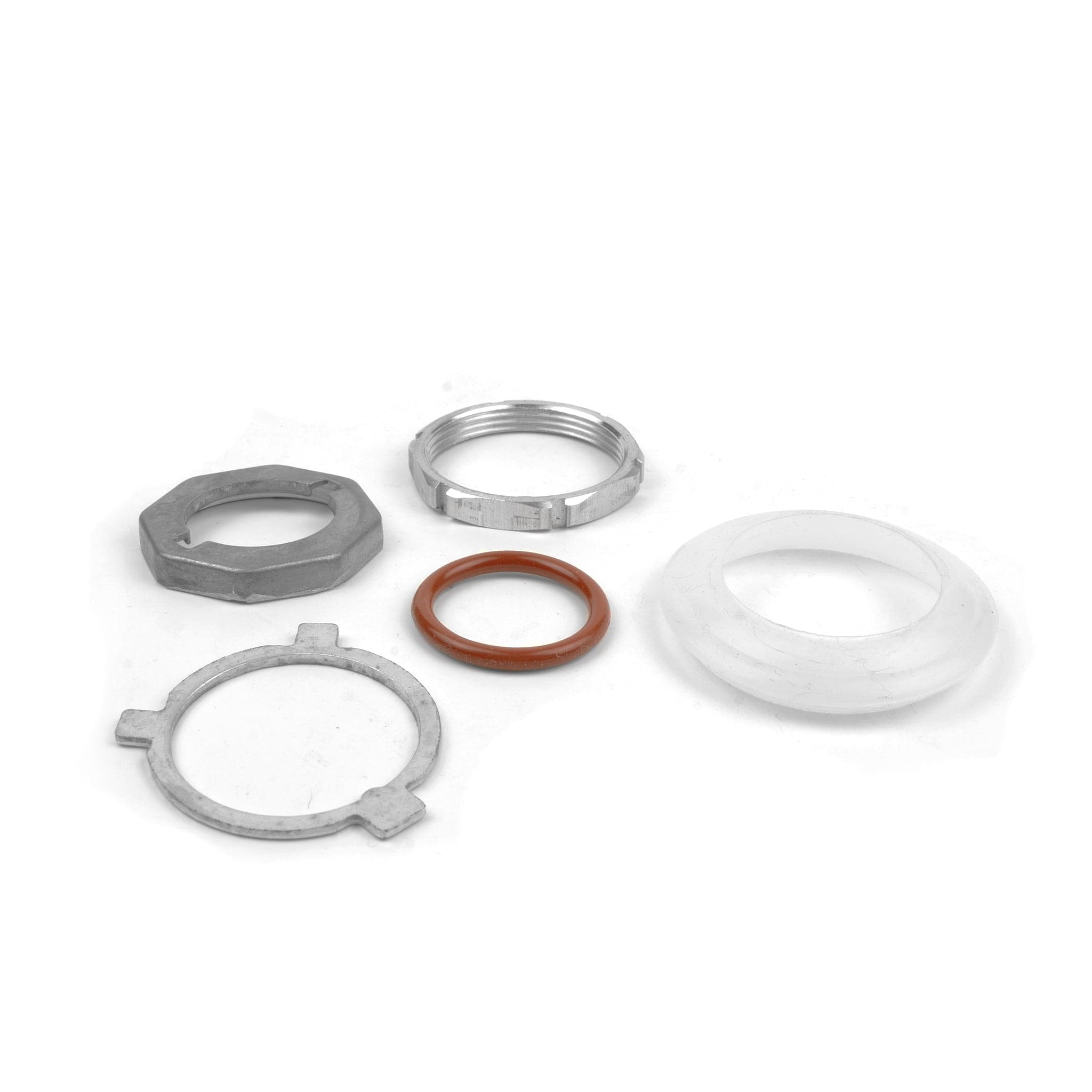

• 2 x Hardware packs (Lock nuts, seals, H4 & H7 adapter plates)
