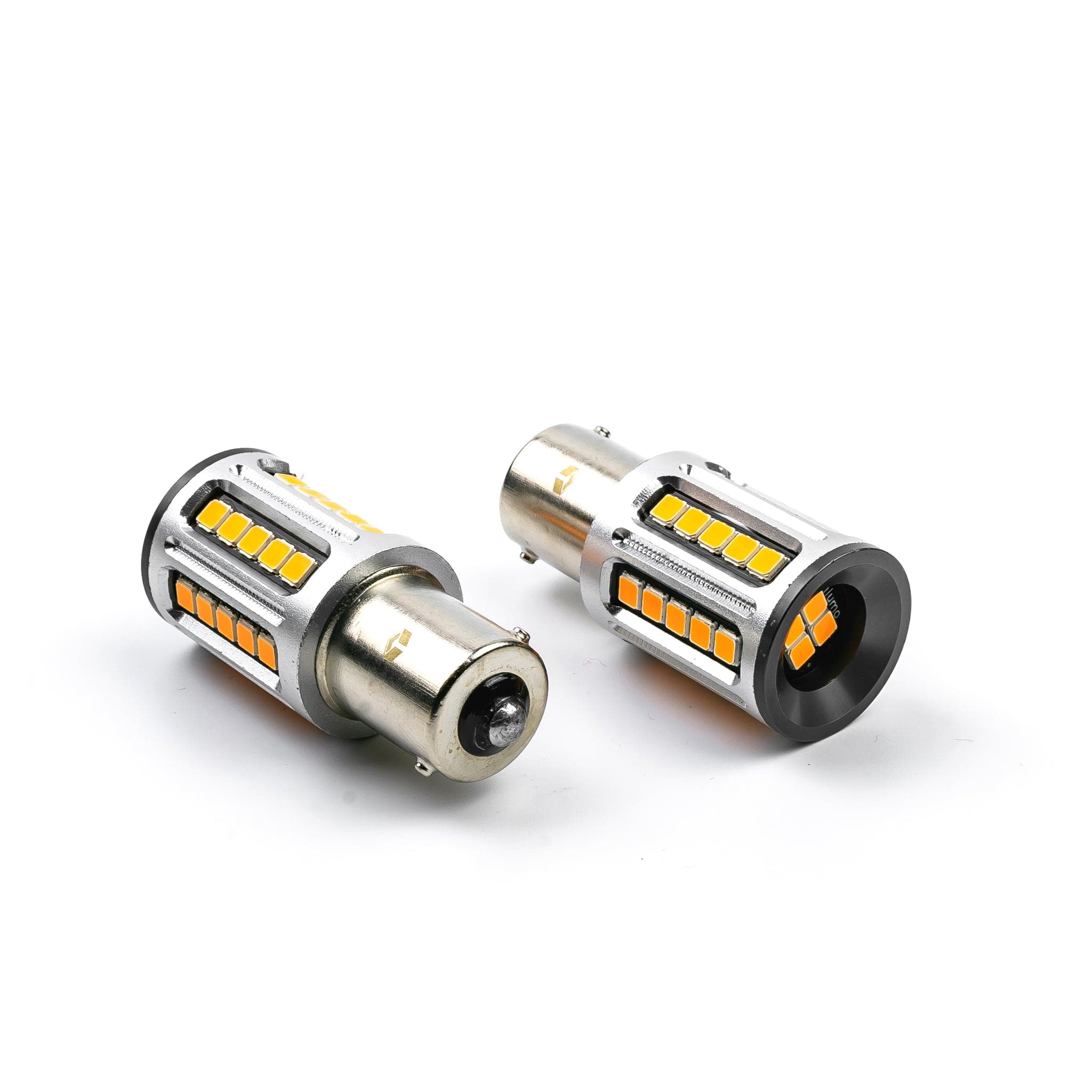

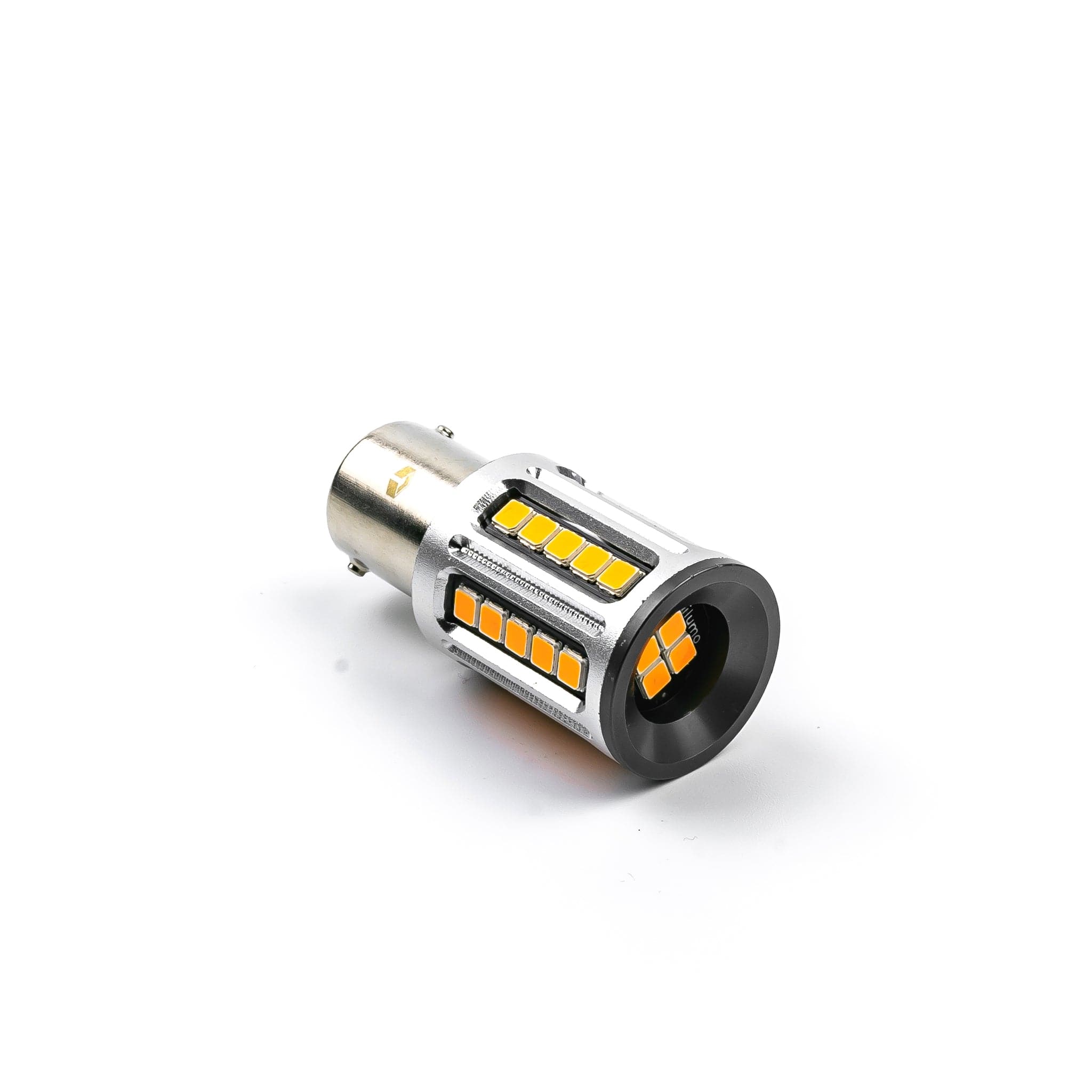

BURST+ BA15S (1156)
Tax included.
Pickup available at iilumolab
Please enquire for pick-up availabilities.
BURST+ BA15S (1156)
Pair
iilumolab
22 Atlantic Drive
Keysborough VIC 3173
Australia
Click HERE to make a booking
The BURST+ is our latest and greatest LED Indicator light range. BURST+ was designed to be a compact bulb compared to its predecessor without compromising performance, yet packing serious amount of punch. Equipped with built-in load resistors and an intelligent thermal control driver, these components in unison prevent hyper flashing and error codes from popping up on the dash, reliably.
NOTE: Some CANBUS systems in certain vehicles are far more temperamental compared to others. Load resistors or LED relay flashers may be required to cancel out any errors.
SPECIFICATIONS
- Compatible Voltage: 12V DC
- Max Lumens: 1800LM
- Socket Type: BA15S / 1156
- LED: 34 x Proprietary 3030 (Amber)
- Material: 6063 Aluminium Alloy
- Dimensions: 22mm (D) x 45mm (L)
- Not ECE/ADR/DOT Approved
FEATURES
- CANBUS compatible (99% pass rate)
- Built In Load Resistors prevent hyper flashing
- 360° Directional light
- CNC machined aluminium body for excellent thermal capabilities
- Aluminium PCB for efficient heat dissipation to increase reliability
- High Quality Nickel & Tin socket
- Intelligent Thermal Control Driver disables built-in load resistors once bulb gets too hot to prevent damage (The bulb will hyper flash until it's cooled down to a safe working temperature. Ambient temperatures can affect timing).
- iilumo printed PCB to ensure authenticity
- Designed by iilumo
BULB CROSS REFERENCE
- 1156, BA15S, 1141, 2396, 1156, 67, 87, 12088, 1156NA, 97NA, 1095, 93, 97A, 1295NA, 97, 3497, 1073, 1295, 1195, 1156A, 7506, 199, 631, 1156ST, 1073LL, 1156LL, 7506L, 3497LL, 7506ST, 1156ALL, 97LL, 7506LL, 93LL, 631LL, 1141LL, 5008, 5007, 1155, 89, 57X, 105, 1003, 98, 1003LL, 67LL, 89LL, 105LL, 5008LL, 5007LL, 1155LL, P21, P21W
WARRANTY
- 2 Year Warranty
INCLUDED
- Pair : 2 x BURST+ BA15S
- Single : 1 x BURST+ BA15S
