Description
The BlackVue DR970X-2CH Box Plus, is the most secure and high-performance 4K dash cam in the BlackVue lineup. Designed for professional drivers, fleet management, and everyday users who demand the highest level of security and recording quality, this dual-channel dash cam delivers 4K Ultra HD front recording and Full HD rear coverage with advanced storage protection via its separate lockable recording unit.

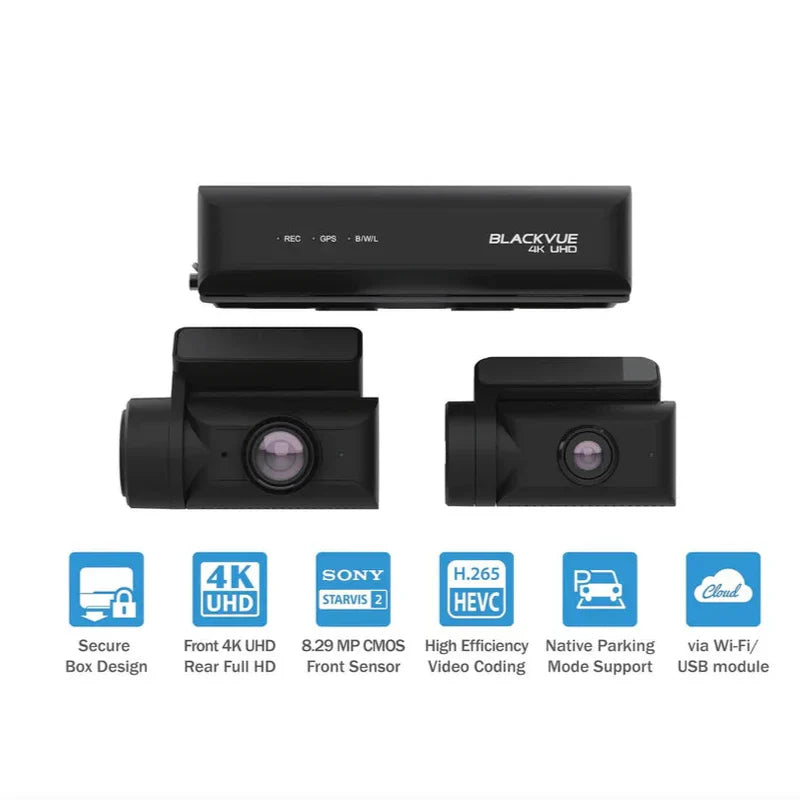

4K UHD Front & Full HD Rear – Unmatched Video Clarity
The BlackVue DR970X-2CH Box Plus features a 4K Ultra HD (3840x2160p @30fps) front camera, delivering four times the resolution of standard 1080p dash cams, capturing license plates, road signs, and key details with absolute precision. The Full HD (1920x1080p @30fps) rear camera, equipped with a Sony STARVIS sensor, enhances low-light recording, ensuring clear footage at night or in poor lighting conditions.

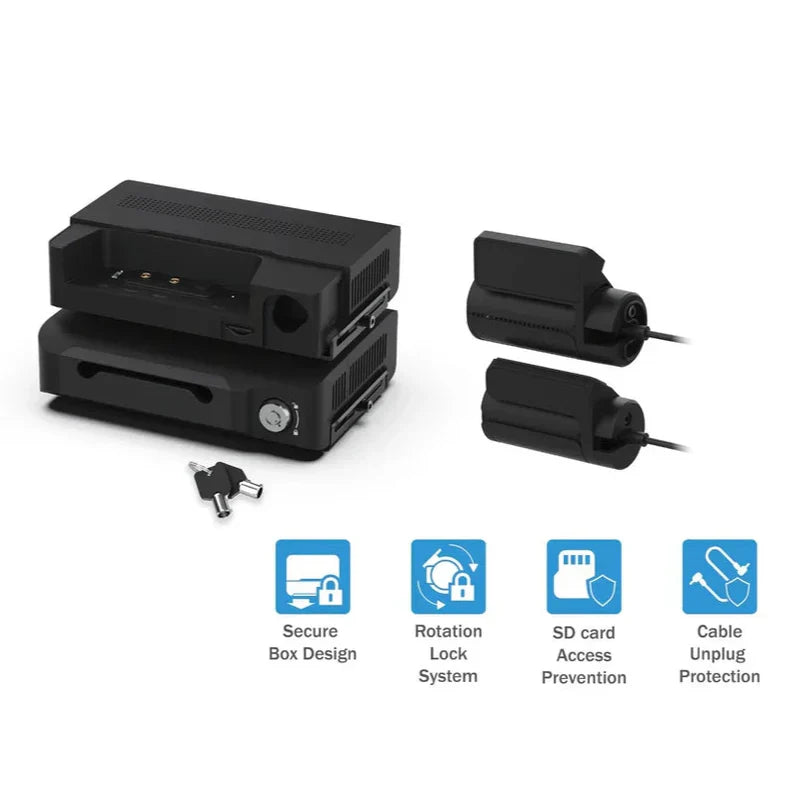

Lockable Box Design for Secure Recording & Fleet Management
Unlike standard dash cams, the DR970X-2CH Box Plus features a separate lockable recording unit, keeping footage safe from tampering or accidental deletion. Ideal for rideshare drivers, fleet operators, and businesses, this secure design ensures that critical recordings remain protected.
Built-In Wi-Fi, GPS & BlackVue Cloud
With Wi-Fi and GPS built-in, users can easily track vehicle location, speed, and access real-time footage via the BlackVue App (iOS & Android). BlackVue Cloud connectivity allows for remote monitoring, live streaming, and instant impact notifications, ensuring you can always check on your vehicle.
Advanced Parking Mode – 24/7 Security for Your Vehicle

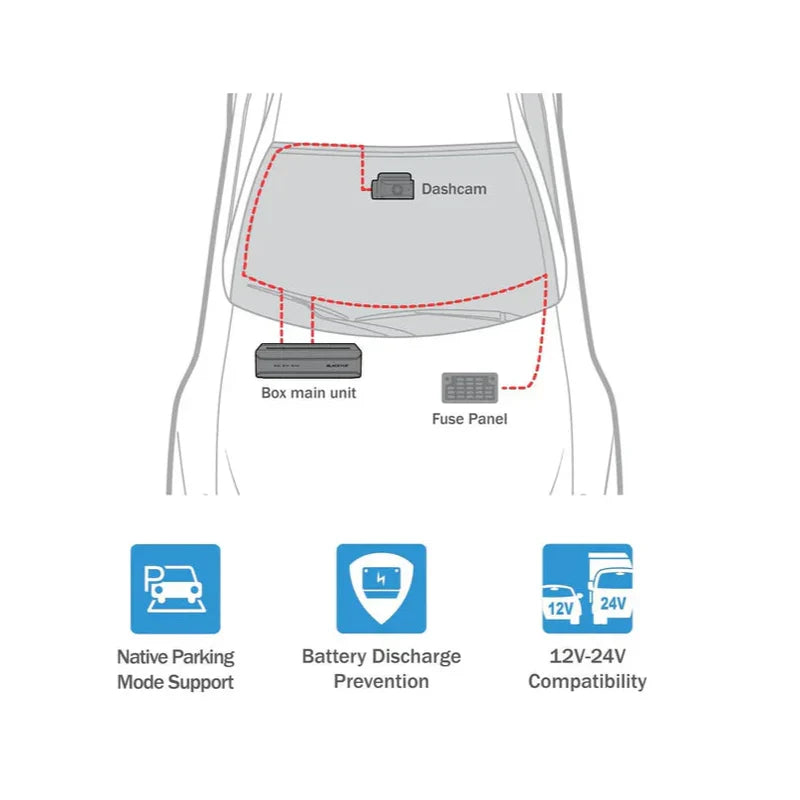

The BlackVue DR970X-2CH Box Plus features intelligent parking mode, recording motion and impact events while parked. The system includes pre-buffered recording, ensuring that every important moment is captured before and after an incident occurs. Pair it with a BlackVue hardwiring kit or battery pack for continuous monitoring without draining your car’s battery.
Key Features of the BlackVue DR970X-2CH Box Plus
- 4K UHD front camera for ultra-sharp footage
- Full HD rear camera with Sony STARVIS sensor for night vision
- Lockable recording box for secure data storage
- Wi-Fi & GPS built-in for seamless connectivity
- BlackVue Cloud support for remote access & alerts
- Advanced Parking Mode with motion & impact detection
- Loop recording & event file protection
- Supports up to 256GB microSD cards (64GB included)
- Tamper-proof design for professional and fleet use
Like the DR770X Box, this kit offers the same tamper-proof features of the box processor and cameras.
Available in one configuration only with Front 4K and Rear 1080p cameras.
The supplementary cameras available for the DR770X Box Pro (RC1-IR-C, ERC1-C) are also compatible with this system.
Key Specifications
| Model Name |
DR770X-BX-PRO |
|---|---|
| Channel |
Up to 3 Channel Capable (Front, Interior & Rear (Internal or External)) Custom combinations can be used with the DR770X Box Pro |
| Main unit: Colour / Size / Weight |
Black / Length 135.0mm x Width 101.0 mm x Height 33 mm / 209 g |
| Cameras: Colour / Size / Weight |
Front: Black / Length 62.5 mm x Width 34.3 mm x Height 34.0 mm / 43 g |

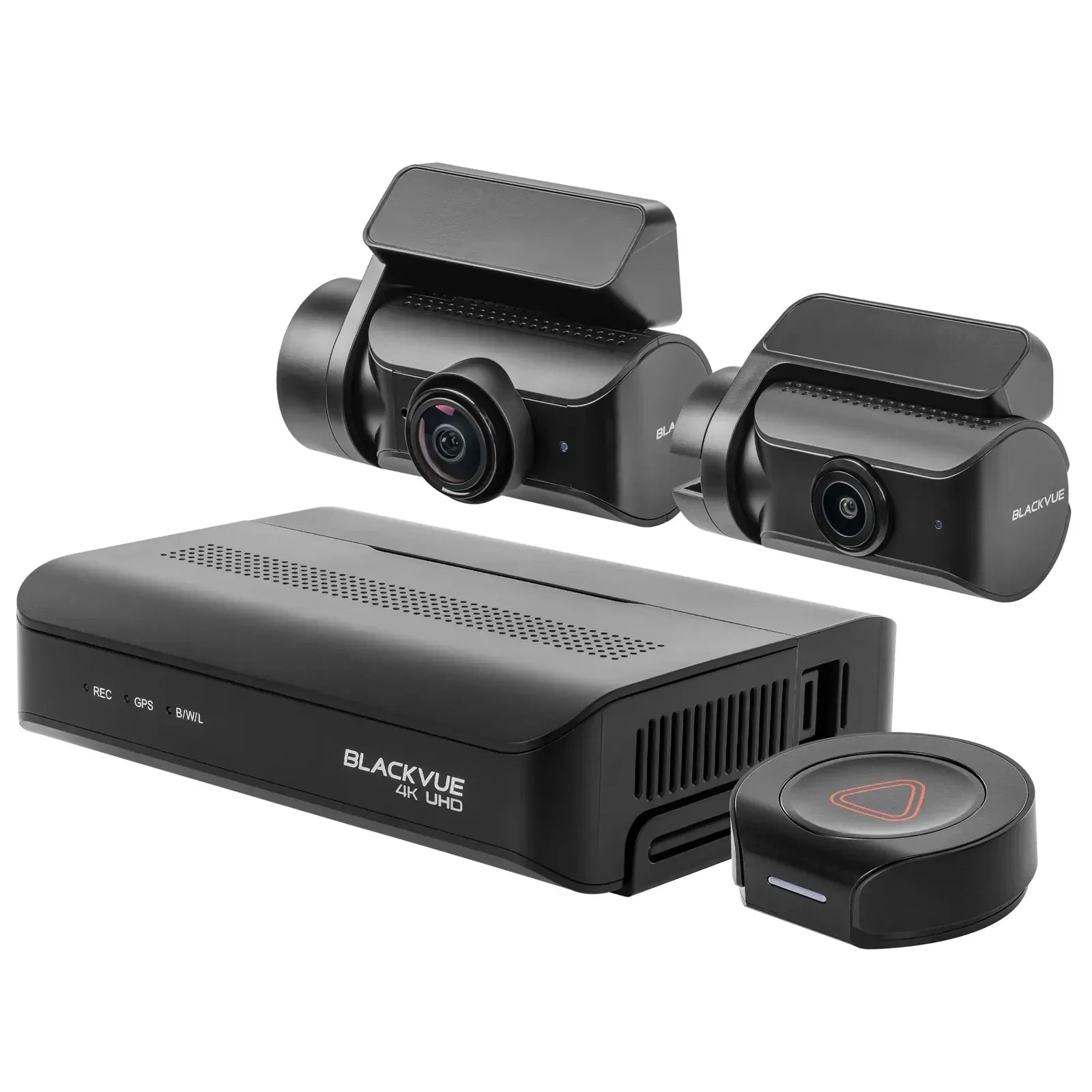

| (EB-1)Wireless button: Colour / Size / Weight |
Black / Length 45.2 mm x Width 42.0 mm x Height 14.5 mm / 23 g |
| Memory |
microSD Card (64 GB/128 GB/256 GB/512 GB) *Only BlackVue SD cards are recommended. |
| Speaker |
Built-in |

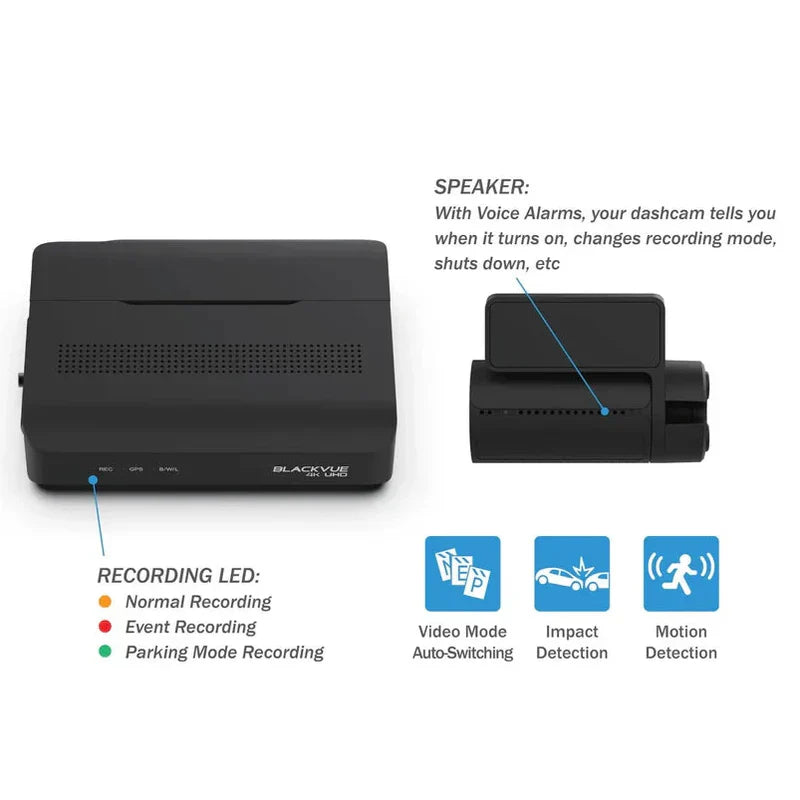

| LED |
Main unit : Recording LED, GPS LED, BT/Wi-Fi/LTE LED |
| Infrared Illumination |
Interior IR : 940nm (2 Infrared (IR) LEDS) |
| Sensor |
3-Axis acceleration sensor |
| Battery or Capacitor |
Built-in Super Capacitor Capacitor's are better as they are not at risk of heat damage which batteries face. |
Camera + Recording
| Recording Mode |
Normal Recording |
|---|---|
| SOS Button |
Button press triggers manual recording |
| Camera |
STARVIS™ CMOS Sensor (Approx. 2.1 M Pixel) Each camera has a STARVIS sensor |
| Viewing Angles |
Front (FC1) : Diagonal 139°, Horizontal 116°, Vertical 61° |
| Format Free |
Yes (Adaptive) |
| Front Resolution/FPS |
Full HD (1920×1080) @60FPS Camera resolution is fixed and cannot be changed |
| Rear & Internal Resolution/FPS |
Full HD (1920×1080) @30FPS + Full HD (1920×1080) @30FPS Frame rate may vary during Wi-Fi streaming. |
| Image Quality |
Front / Rear / Interior Highest(Extreme): 16 + 10 + 10 Mbps Highest: 12 + 10 + 10 Mbps High: 10 + 8 + 8 Mbps Normal: 8 + 6 + 6 Mbps |
| Video Codec |
H.264 (AVC) |
| Video File Extension |
MP4 |
Operating
| Input Voltage |
DC 12V – 24V (3 pole DC Plug: (Ø3.5 x Ø1.1), MAX 1A/12V) |
|---|---|
| Power Consumption per hour |
Normal Mode (GPS On / 3CH) : Avg. 750mA / 12V |
| Voltage Cut-off |
Built-in Variable Voltage Cut-off System |
| Operating & Storage Temp. |
-20℃ – 80℃ (-4°F – 158°F ) |
| High Temperature Cut-off |
Approximately 80℃ (176°F) |
Other
| Wi-Fi |
Built-in (802.11n 2.4~2.4835 GHz) |
|---|---|
| Software |
BlackVue Viewer * Windows 7 or higher, Mac Sierra OS X (10.12) or higher |
| GPS |
External Module (Dual Band: GPS, GLONASS) |
| 4G LTE |
Optional via the CM100GLTE module Used in place of included external GPS module |
| Application |
BlackVue Application (Android 8.0 or higher, iOS 13.0 or higher) |
| Microphone |
Built-in Microphone is built-in to the front camera (FC1) |
| Origin |
Made in Korea |
| Certifications |
FCC, ISED, CE, UKCA, RCM, RoHS, Telec, WEEE, KC |
| Warranty |
36 Months Warranty (Australian Customers Only) T&C's Apply |
